Cabling 90
Power supply cabling

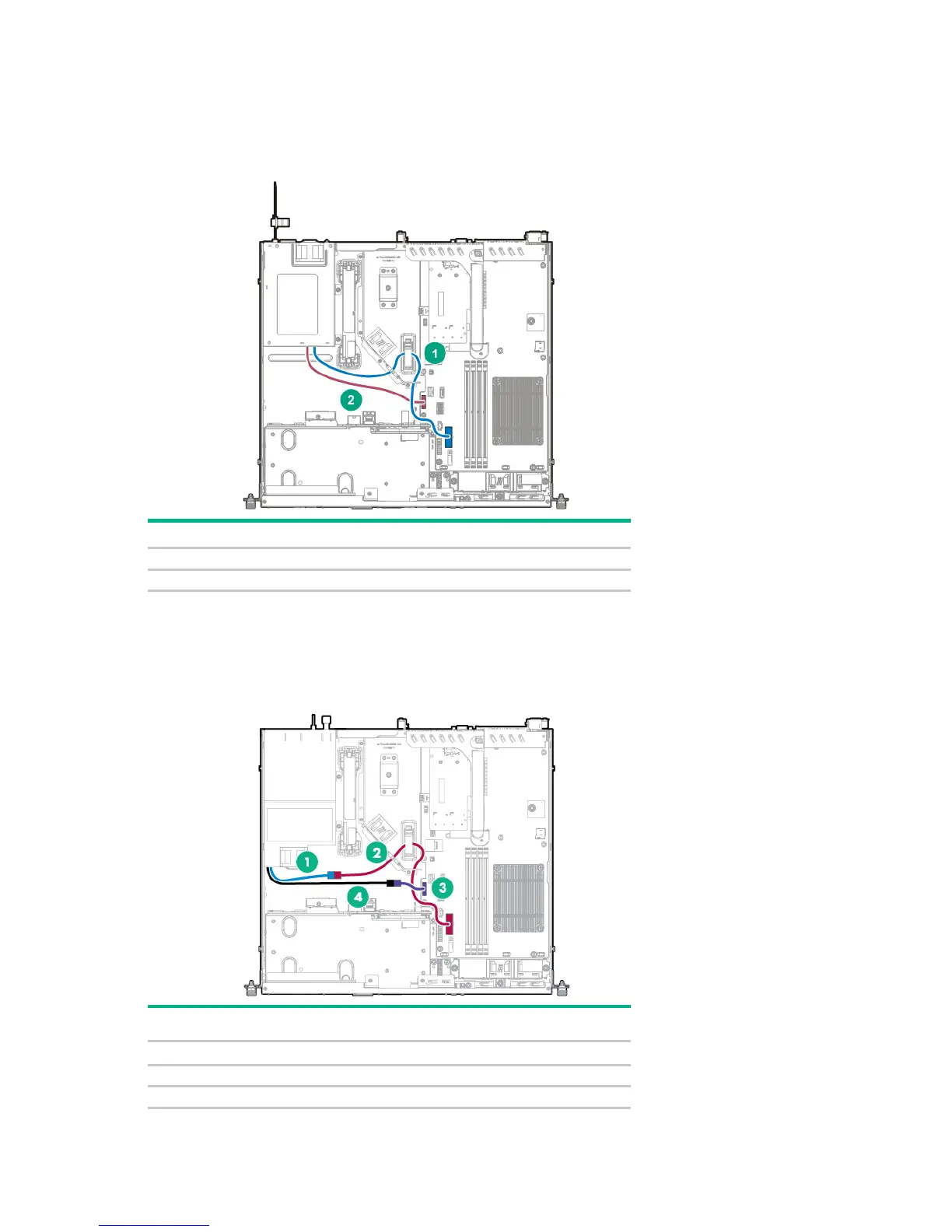

HPE 290 W non-hot-plug power supply cabling
Item
Description
1
14-pin power cable
2
16-pin power supply sideband signal cable
Redundant Power Supply backplane cabling
Item Description
1
24-pin power cable
2
24-pin to 14-pin power extension cable
3
Power supply sideband extension cable
