HP hpe proliant dl20 gen9 - System Board Components

Component identification 11
• Two-slot riser board
Slot
number
Form
factor
Slot
description
1
Low-profile
PCIe3 x8
(8,4,2,1)
2
Full-height,
half-length
PCIe3 x8
(8,4,2,1)
• GPU riser board
Slot
number
Form
factor
Slot
description
—
—
—
2
Full-height,
half-length
PCIe3 x16
(16,8,4,1)

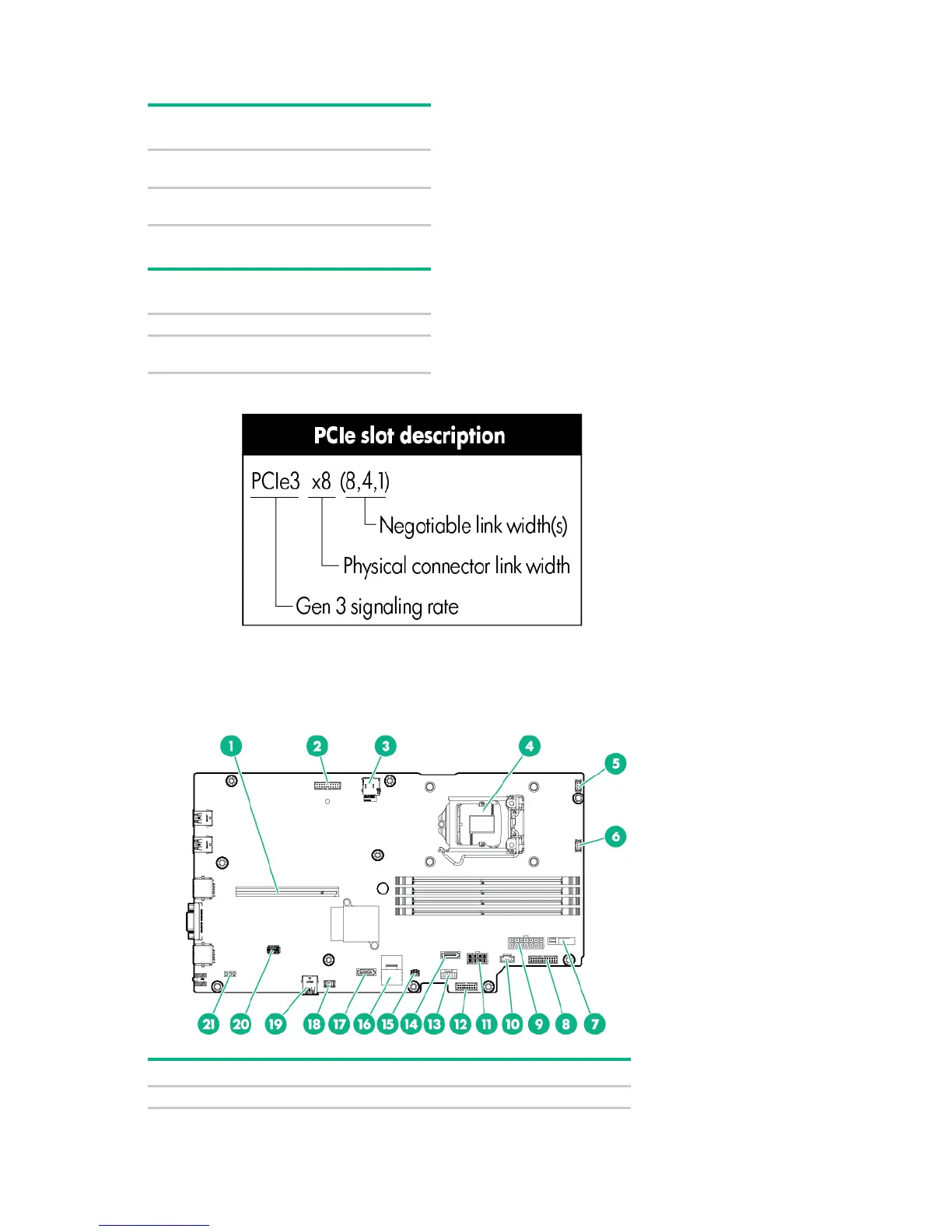

System board components
Item
Description
1
PCIe riser connector*
