HP hpe proliant dl20 gen9 - Rear Panel Components

Component identification 9
Subsystem
Front panel LED
behavior
Processor
2 flashes
Memory
3 flashes
Riser board PCIe slots
4 flashes
FlexibleLOM
5 flashes
Removable HPE Flexible Smart Array
controller/Smart SAS HBA controller
6 flashes
System board PCIe slots
7 flashes
Power backplane or storage backplane
8 flashes
Power supply
9 flashes
For more information, see "Front panel LEDs and buttons (on page 8)."

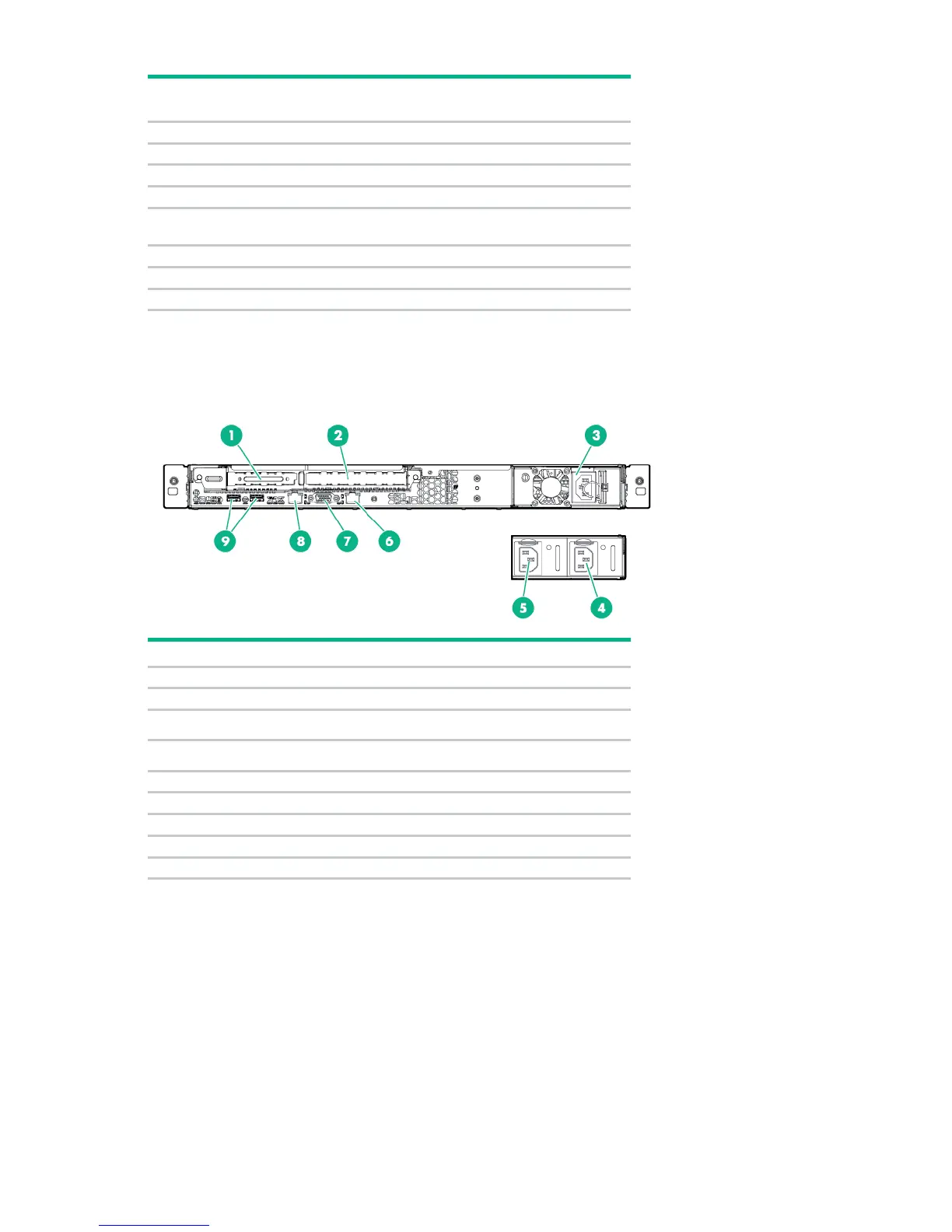

Rear panel components
Item
Description
1
Slot 1 PCIe/FlexibleLOM
2
Slot 2 PCIe
3
Non-hot-plug power supply
4
Hot-plug power supply 2
5
Hot-plug power supply 1
6
NIC connector 2
7
Video connector
8
NIC connector 1/iLO management connector
9
USB 3.0 connectors (2)
