Component identification 10

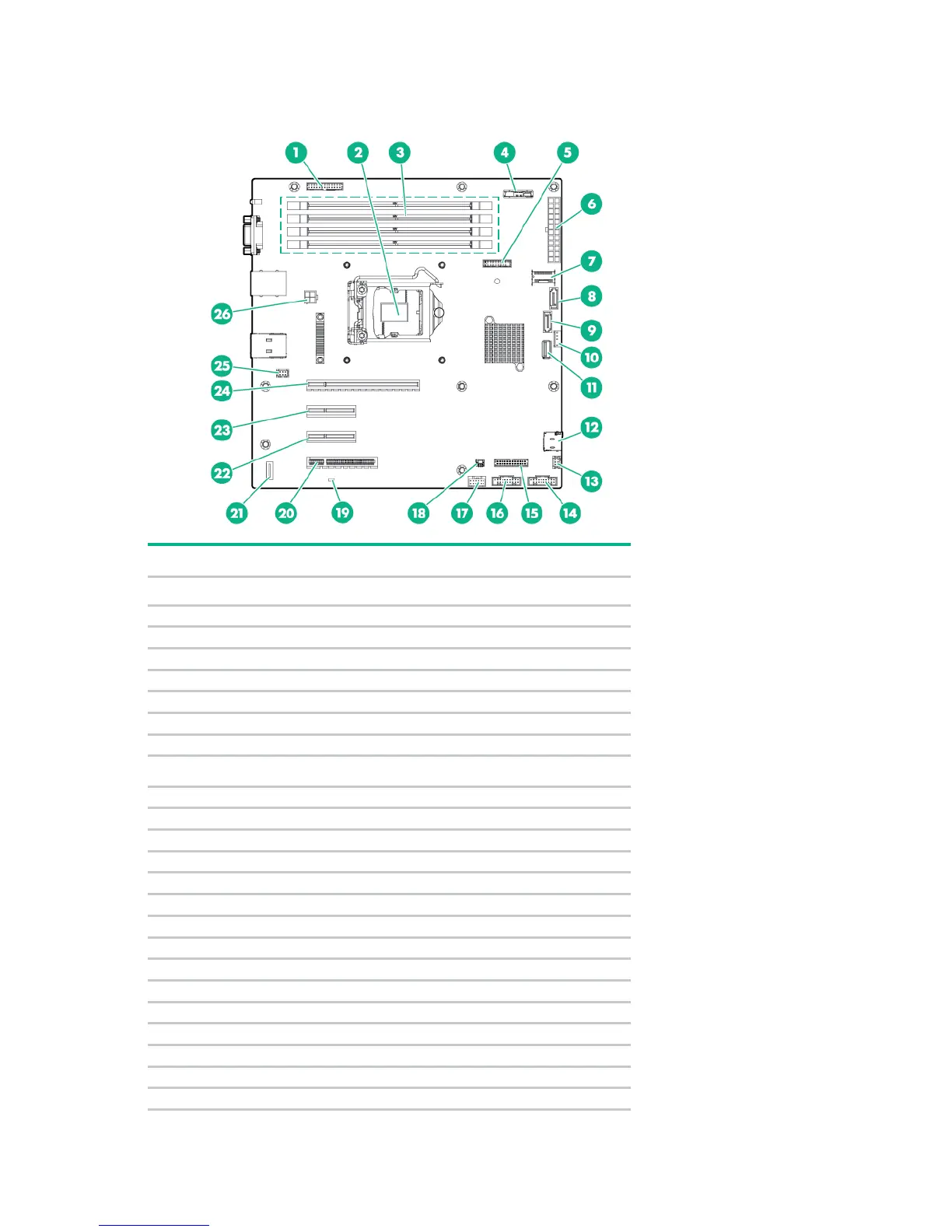

System board components
Item Description
1
RPS connector
2
Processor
3
DIMM slots
4
System battery
5
Trusted platform module connector
6
24-pin power connector
7
Mini-SAS connector
8
SATA connector 5
9
SATA connector 6
10
Internal USB 2.0 connector (for tape drive)
11
Internal USB 2.0 connector
12
microSD card slot
13
Front PCI fan connector
14
Front panel USB connector
15
Front panel I/O connector
16
Front panel USB connector
17
Smart Storage Battery connector
18
Storage backup power connector
19
NMI header
20
PCIe slot 1 PCIe3 x8 (4,1), half-length*
21
System maintenance switch
22
PCIe slot 2 PCIe3 x4 (1), full-length*
23
PCIe slot 3 PCIe3 x4 (1), full-length*
24
PCIe slot 4 PCIe3 x16 (16,8,4,1), full-length*
