Hardware options installation 26
b.

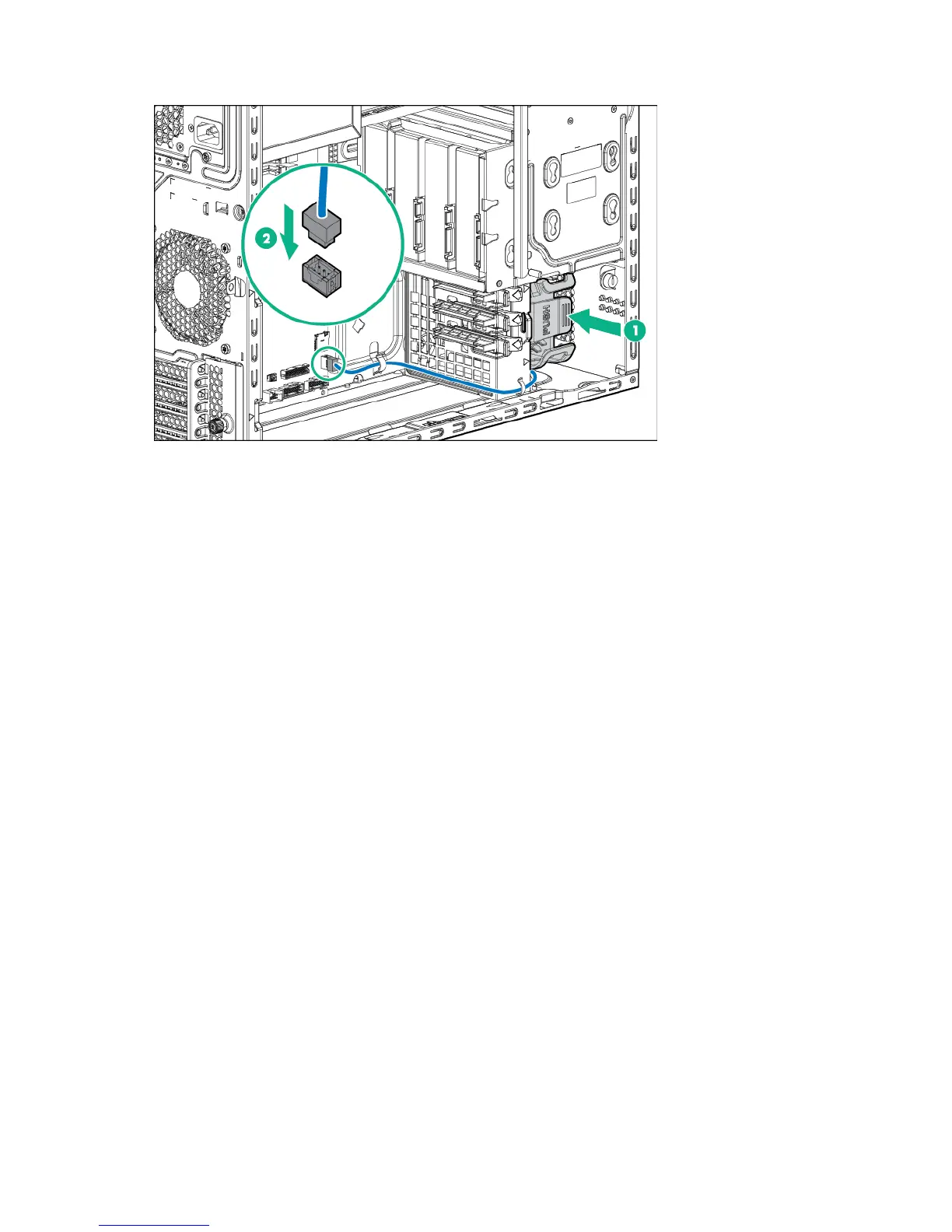

Route the front PCI fan cable through the cable clips and connect the cable to the system board.
8. Install the air baffle (on page 19).
9. Install the access panel (on page 17).
10. Install the bezel (on page 16).
11. Return the server to an upright position.
12. Connect each power cord to the server.
13. Connect each power cord to the power source.
14. Power up the server (on page 16).
Slim optical disk drive option
For more information about product features, specifications, options, configurations, and compatibility,
see the product QuickSpecs on the Hewlett Packard Enterprise website (http://www.hpe.com/info/qs).
To install the component:
1. Power down the server (on page 16).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Remove the bezel (on page 17).
4. Place the server on its side with the access panel facing up.
5. Remove the access panel (on page 18).
6. Remove the air baffle (on page 20).
