Hardware options installation 61
To install the component:
1. Back up all server data.
2. Power down the server (on page 16).
3. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
4. Remove the bezel (on page 17).
5. Place the server on its side with the access panel facing up.
6. Remove the access panel (on page 18).
7. Remove the air baffle (on page 20).
8. Open the DIMM slot latches.

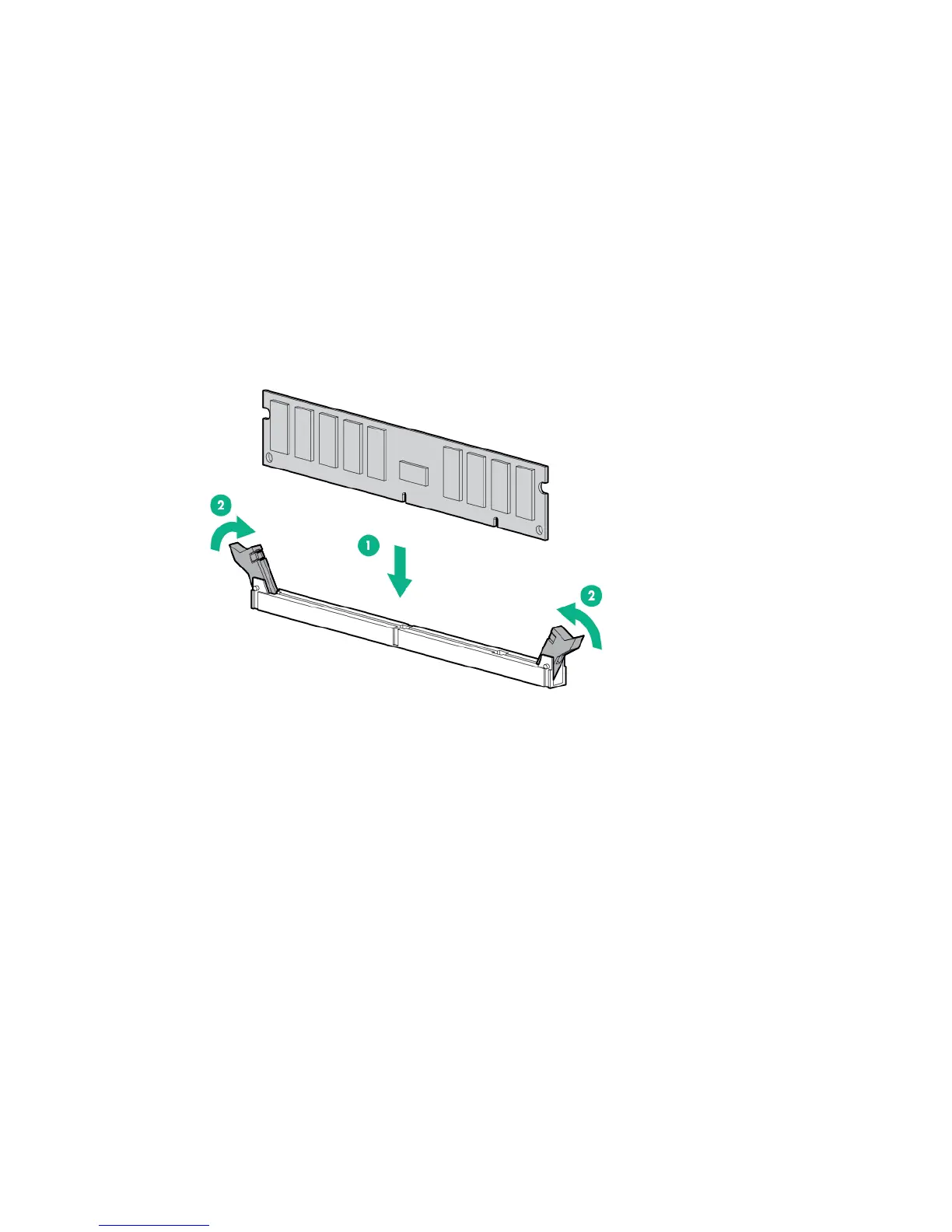

9. Install the DIMM.
10. Install the air baffle (on page 19).
11. Install the access panel (on page 17).
12. Install the bezel (on page 16).
13. Return the server to an upright position.
14. Connect each power cord to the server.
15. Connect each power cord to the power source.
16. Power up the server (on page 16).
Use the BIOS/Platform Configuration (RBSU) in the UEFI System Utilities to configure the memory mode.
Setting up the HPE PS1810-24G Switch (optional)
If you intend to use the server with the companion PS 1810-24G Switch, follow the procedures in this
section.
For more information on switch-related settings and operational procedures, see the documentation for
your switch model on the Hewlett Packard Enterprise website (http://www.hpe.com/networking/support).
Mounting the switch with the server
