Hardware options installation 55
b.

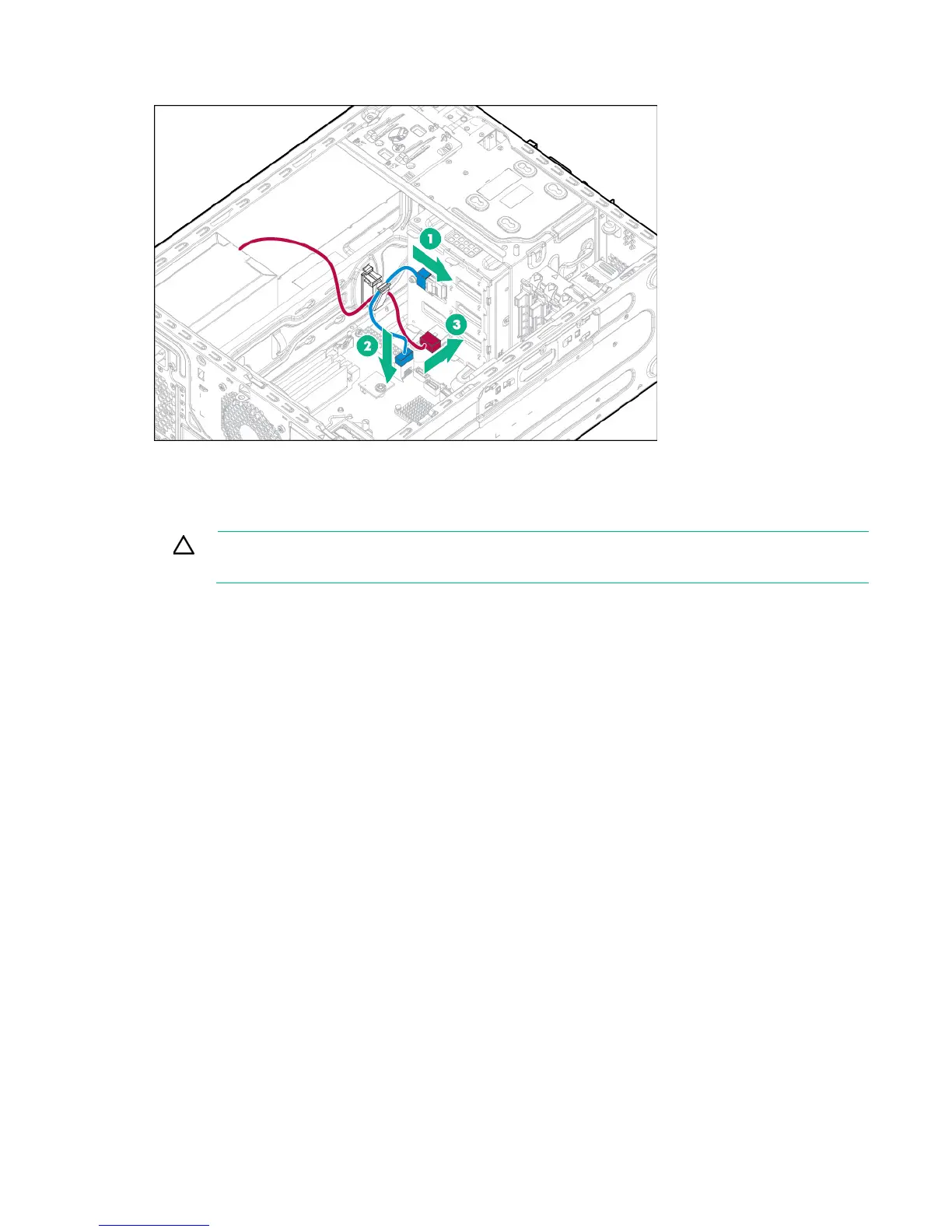

Connect the power cable to the backplane.
11. Install the hot-plug drives ("Installing a hot-plug drive" on page 41).
The hot-plug drive cage allows accessing storage drives from the server front bezel. The hot-plug
drive cage only supports hot-plug drives. Non-hot-plug drives installed in a hot-plug drive cage will
fail.
CAUTION: To prevent improper cooling and thermal damage, do not operate the server
unless all bays are populated with either a component or a blank.
Populate drive bays, based on the drive numbering sequence. Start from the drive bay with the
lowest device number ("Drive numbering" on page 13).
12. Install the air baffle (on page 19).
13. Install the access panel (on page 17).
14. Install the bezel (on page 16).
15. Return the server to an upright position.
16. Connect each power cord to the server.
17. Connect each power cord to the power source.
18. Power up the server (on page 16).
19. Determine the status of the drive from the drive LEDs ("Hot-plug drive LED definitions" on page 14).
Eight-bay SFF hot-plug drive cage option
For more information about product features, specifications, options, configurations, and compatibility,
see the product QuickSpecs on the Hewlett Packard Enterprise website (http://www.hpe.com/info/qs).
To install the component:
1. Power down the server (on page 16).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Remove the bezel (on page 17).
4. Place the server on its side with the access panel facing up.
