Operations 19
c.

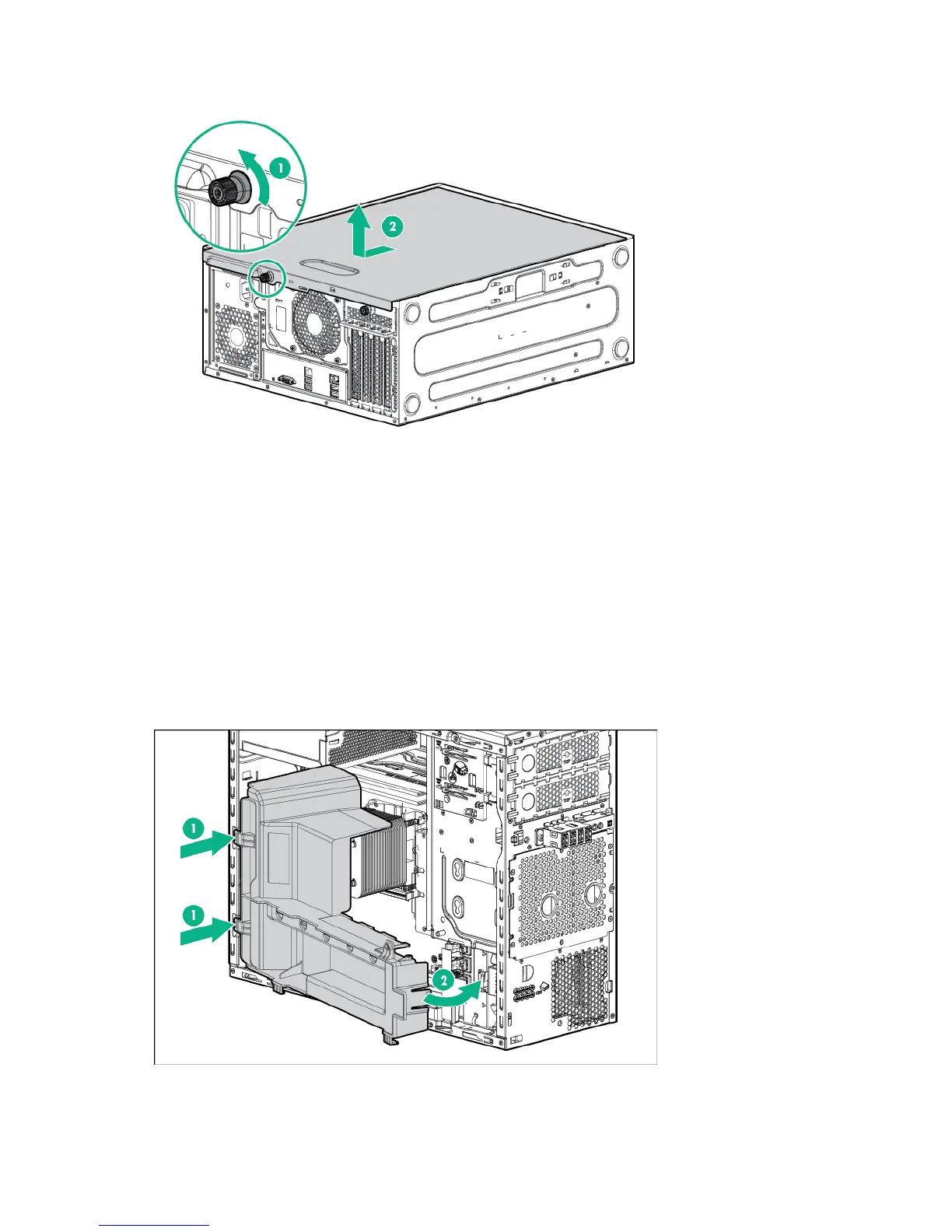

Lift the access panel away from the chassis.
Install the air baffle
1. Power down the server (on page 16).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Remove the bezel (on page 17).
4. Place the server on its side with the access panel facing up.
5. Remove the access panel (on page 18).
6. Insert the tabs on the baffle into the slots on the rear chassis.
7. Push the front end of the baffle into the chassis.
8. Install the access panel (on page 17).
9. Install the bezel (on page 16).
