Component identification 14

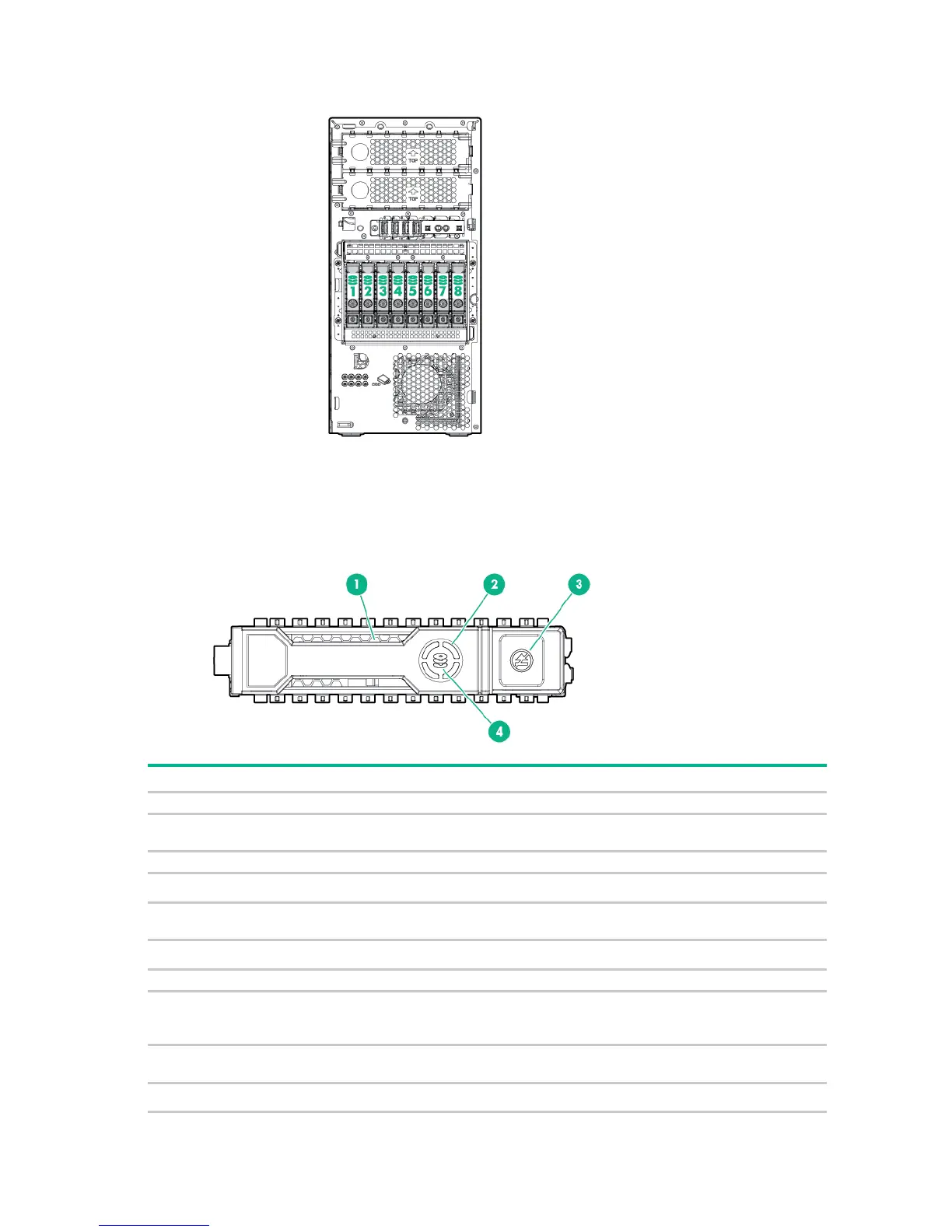

• Eight-bay SFF hot-plug drive numbering
Hot-plug drive LED definitions
When a drive is configured as a part of an array and connected to a powered-up controller, the drive LEDs
indicate the status of the drive.
The drive is being identified by a host application.
The drive carrier firmware is being updated or requires an
update.
3
Do not remove the drive. Removing the drive causes one or
more of the logical drives to fail.
Removing the drive does not cause a logical drive to fail.
The drive is a member of one or more logical drives.
The drive is rebuilding or performing a RAID migration, strip size
migration, capacity expansion, or logical drive extension, or is
erasing.
amber/green
The drive is a member of one or more logical drives and predicts
the drive will fail.
The drive is not configured and predicts the drive will fail.
