Hardware options installation 48
11.

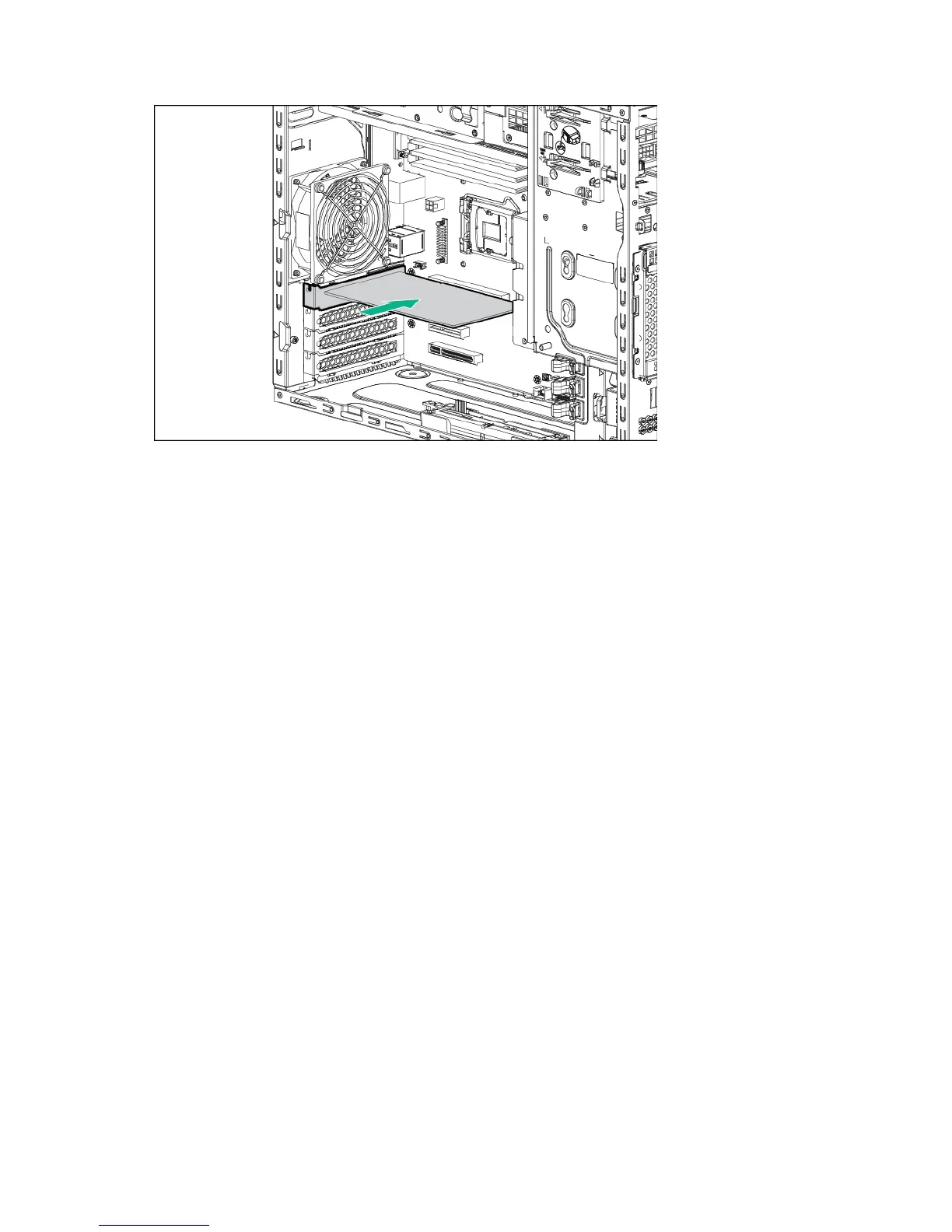

Install the storage controller.
12. Install the PCIe slot cover retainer.
13. If you installed a cache module on the storage controller, connect the cache module cable to the
system board connector. For cache module cabling information, see "FBWC module cabling
("FBWC cabling" on page 71)."
14. Connect all necessary cables to the storage controller and drive cage backplane. For internal drive
cabling information, see "Storage cabling (on page 66)."
15. Install a front PCI fan ("Front PCI fan option" on page 25).
16. Install the air baffle (on page 19).
17. Install the access panel (on page 17).
18. Install the bezel (on page 16).
19. Return the server to an upright position.
20. Connect each power cord to the server.
21. Connect each power cord to the power source.
22. Power up the server (on page 16).
Installing a Smart Storage Battery
For more information about product features, specifications, options, configurations, and compatibility,
see the product QuickSpecs on the Hewlett Packard Enterprise website (http://www.hpe.com/info/qs).
To install the component:
1. Power down the server (on page 16).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Remove the bezel (on page 17).
4. Place the server on its side with the access panel facing up.
5. Remove the access panel (on page 18).
6. Remove the air baffle (on page 20).
