Hardware options installation 43
9.

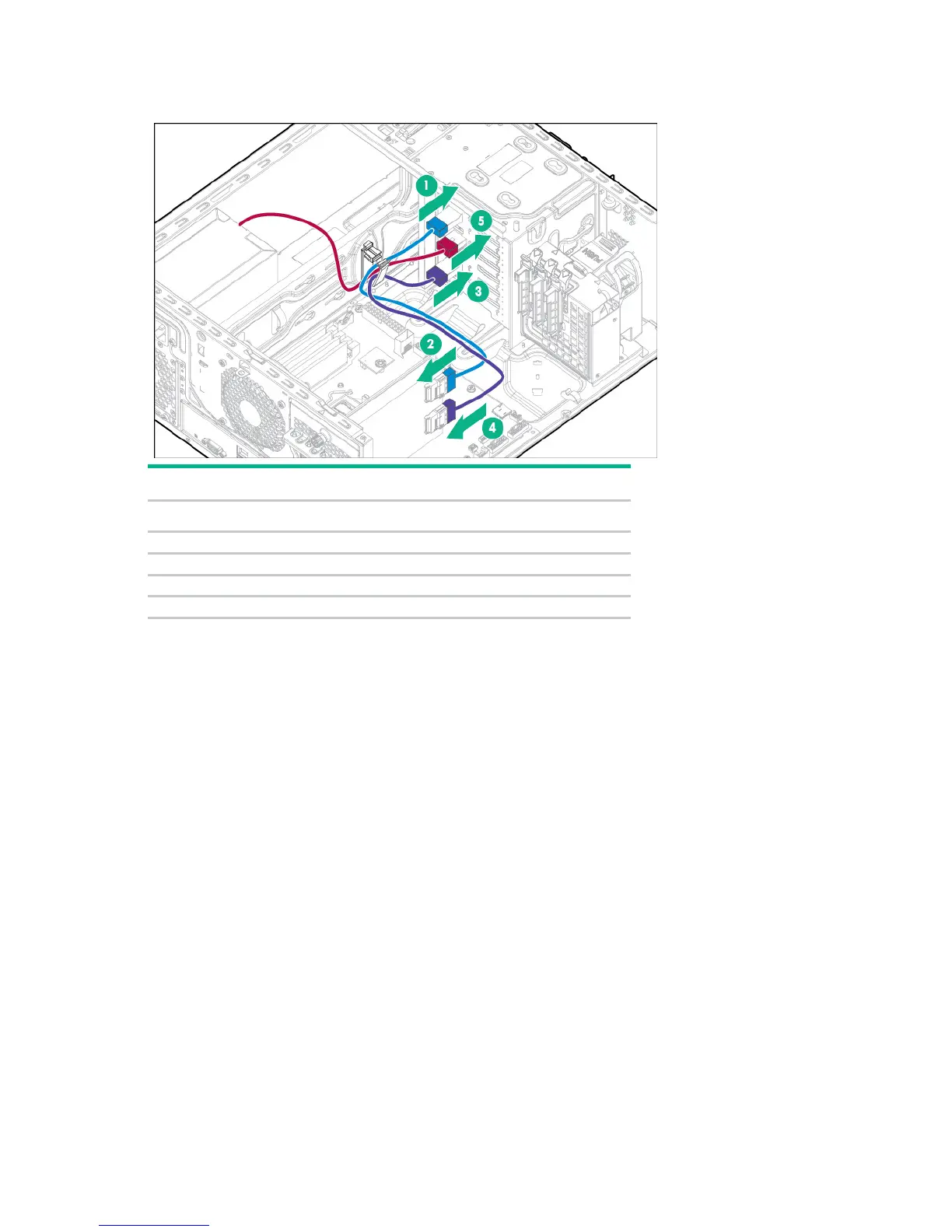

Connect one end of the cables to the Host Bus Adapter, route the cables through the cable clip, and
then connect the cables to the drive backplane.
Item Description
1
Port 1 drive backplane connection
Port 1 controller connection
Port 2 drive backplane connection
Port 2 controller connection
10. Install the Host Bus Adapter ("Installing a storage controller and FBWC module options" on page
45).
Storage controllers may be installed in PCIe slot 1 or 4. HPE recommends installing the H240/H241
Host Bus Adapter in slot 4 for optimal performance.
11. Install the air baffle (on page 19).
12. Install the access panel (on page 17).
13. Install the bezel (on page 16).
14. Return the server to an upright position.
15. Connect each power cord to the server.
16. Connect each power cord to the power source.
17. Power up the server (on page 16).
Smart Array Controller Mini-SAS cable option
For more information about product features, specifications, options, configurations, and compatibility,
see the product QuickSpecs on the Hewlett Packard Enterprise website (http://www.hpe.com/info/qs).
To install the component:
1. Backup all server data.
2. Power down the server (on page 16).
3. Remove all power:
a. Disconnect each power cord from the power source.
