Hardware options installation 33
Install the RPS enablement option to improve power efficiency and enable power redundancy. Power
redundancy requires the installation of two power supply modules. This module is a separately purchased
option and is not part of the RPS enablement kit.
When the RPS enablement option is installed, the lower media drive bay will not be available.
To install the component:
1. Power down the server (on page 16).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Remove the bezel (on page 17).
4. Place the server on its side with the access panel facing up.
5. Remove the access panel (on page 18).
6. Remove the air baffle (on page 20).
7. Disconnect all power supply cables from the system board, drive cages, and devices.

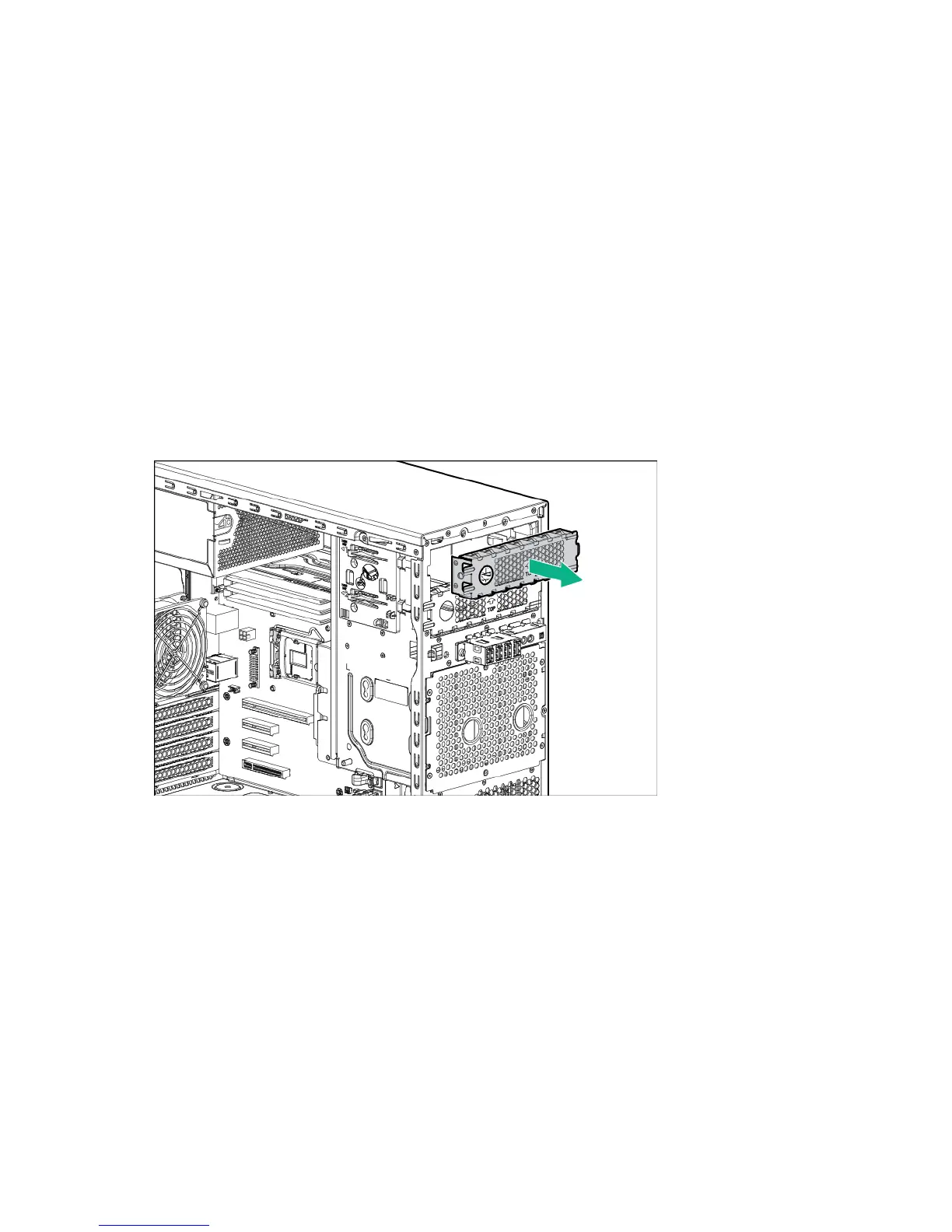

8. Remove all installed devices and any EMI shields from the two media drive bays.
When the RPS enablement is installed, only the upper media drive bay will be available.
To Next Page
