1 Setting Up and Using Your PC Workstation
Connecting an External SCSI Accessory
6
Connecting an External SCSI Accessory
Your PC Workstation is equipped with Ultra wide 16-bit SCSI and Ultra
narrow 8-bit connectors for internal devices and an Ultra narrow 8-bit
SCSI connector for internal or external devices.
When an external SCSI device is connected, the Ultra narrow 8-bit
SCSI controller automatically switches to non-Ultra mode (maximum
capacity of 10 MBs per second).
An external SCSI device is connected as follows:
1 You should assign an unused SCSI address to the accessory. SCSI
addresses range from 0 to 7 for narrow 8-bit SCSI. The SCSI
address 7 is reserved for the integrated SCSI controller (the default
for narrow and wide SCSI devices).
Refer to the manual provided with the SCSI accessory for
instructions on selecting a SCSI address.
NOTE You don’t need to set a SCSI address for Plug and Play SCSI devices
(SCSI devices which support the SCAM protocol).
2 Make sure the SCSI accessory is terminated correctly—either
internally or by a terminating resistor (refer to the manual provided
with the SCSI accessory).

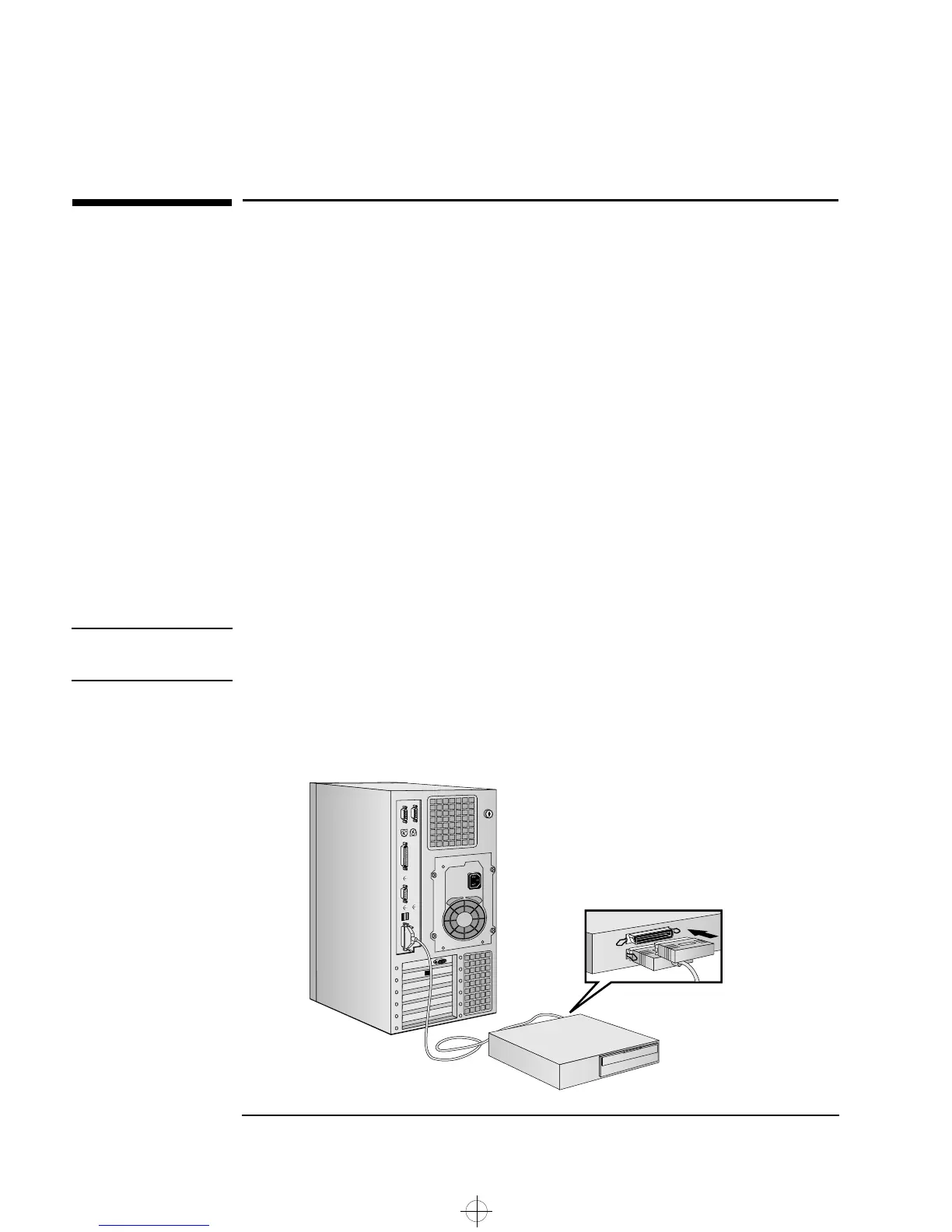

Make sure the SCSI
accessory is terminated
