4 Technical Information

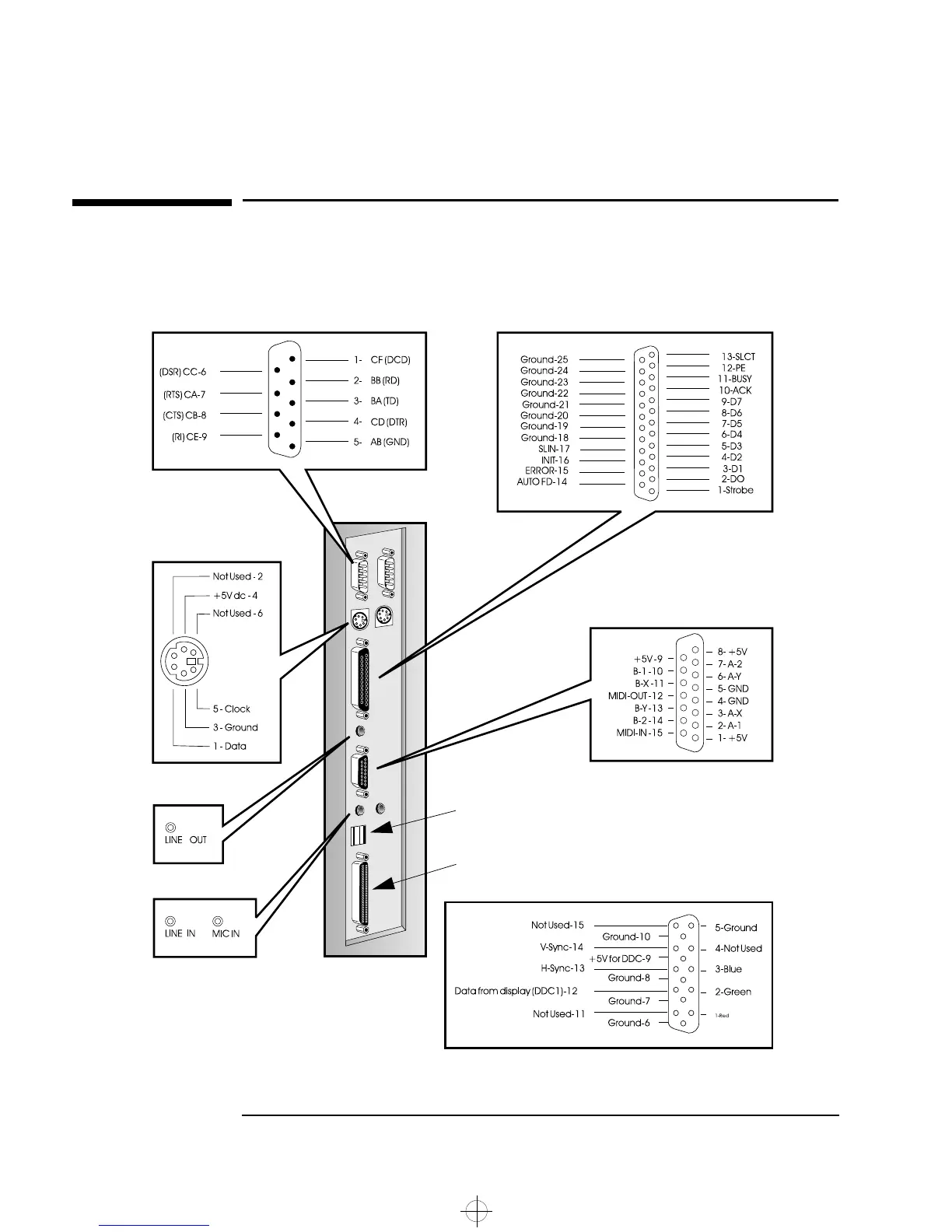

The PC Workstation’s Rear Connectors
86 English
The PC Workstation’s Rear Connectors
25-pin Parallel Port Connector
15-pin VGA Display Connector (on video adapter board)
9-pin Serial Port Connectors:
Port B (left)/Port A (right)
8-bit SCSI Connector
MIDI/Joystick
Connector
3.5 mm Audio jacks
Keyboard (right) and
Mouse (left) Connectors
USB Connectors (two)
