2 How to Install Accessories Inside Your PC Workstation
Installing Mass Storage Devices
Which Data Connectors
to Use
Your PC Workstation has the following cables and connectors on the
system board which may be used by mass storage devices:
• A cable for Ultra wide 16-bit SCSI with five connectors.
• A flexible disk drive cable with a single connector. This supports a
flexible disk drive (the connector is attached to the flexible disk
drive supplied).
• An Enhanced IDE drive cable that supports two IDE devices. If you
install a CD-ROM drive, CD-RW drive, a Zip drive, or a third hard disk
drive, connect it to this cable.
• A cable for Ultra narrow 8-bit SCSI with two connectors for internal
SCSI devices.
Which Power
Connectors to Use

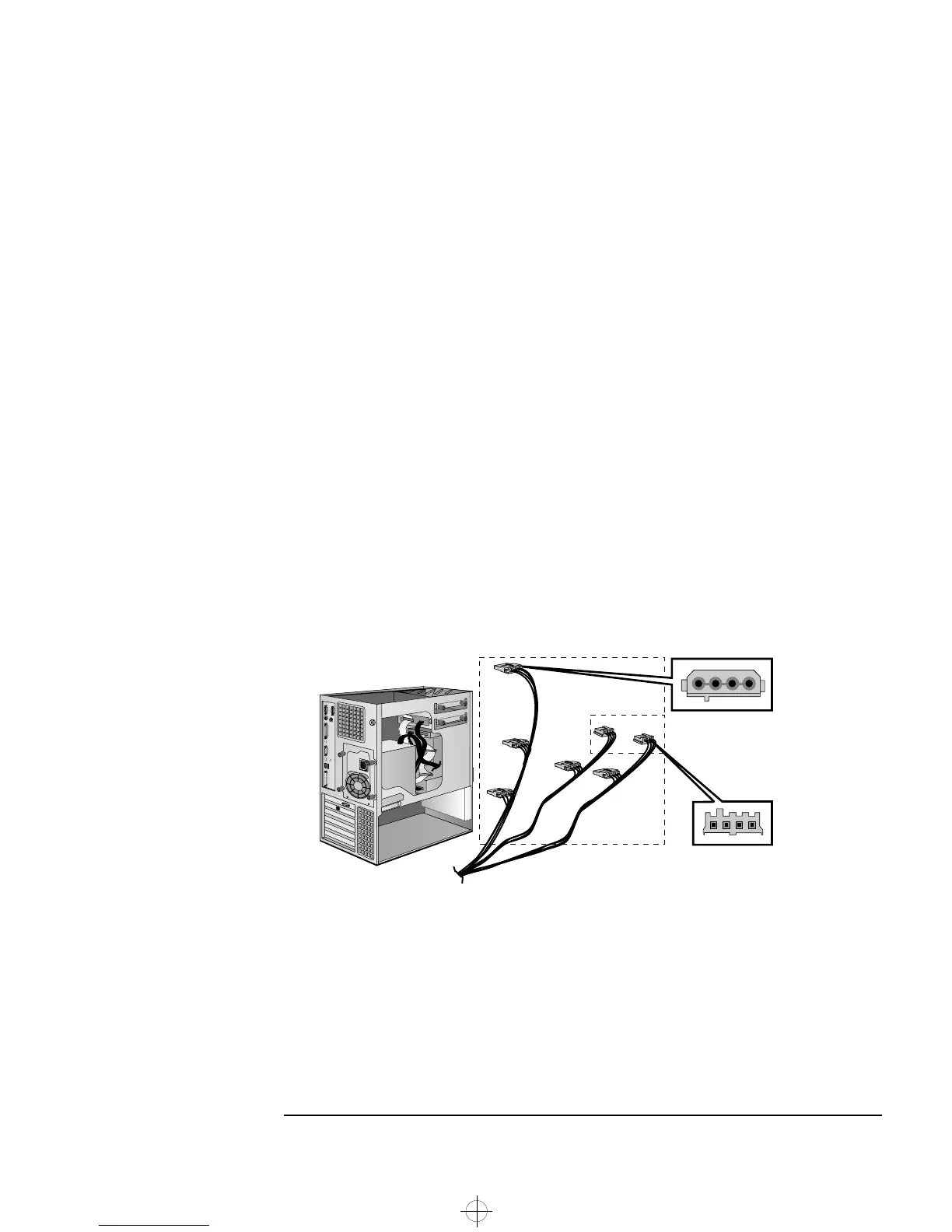

There are two different types of power connectors—these are shown
below.
Some of the power connectors will already be connected to devices. If
you install a device that requires a different connector, the connector
converter should be supplied with the device.
Power Cables for Hard Disk
Drives, Zip Drives, Tape Drives,
CD-RW, and CD-ROM Drives
Power Cable for 3.5-inch
Flexible Disk Drive
