HP OMEN MAX - Page 80

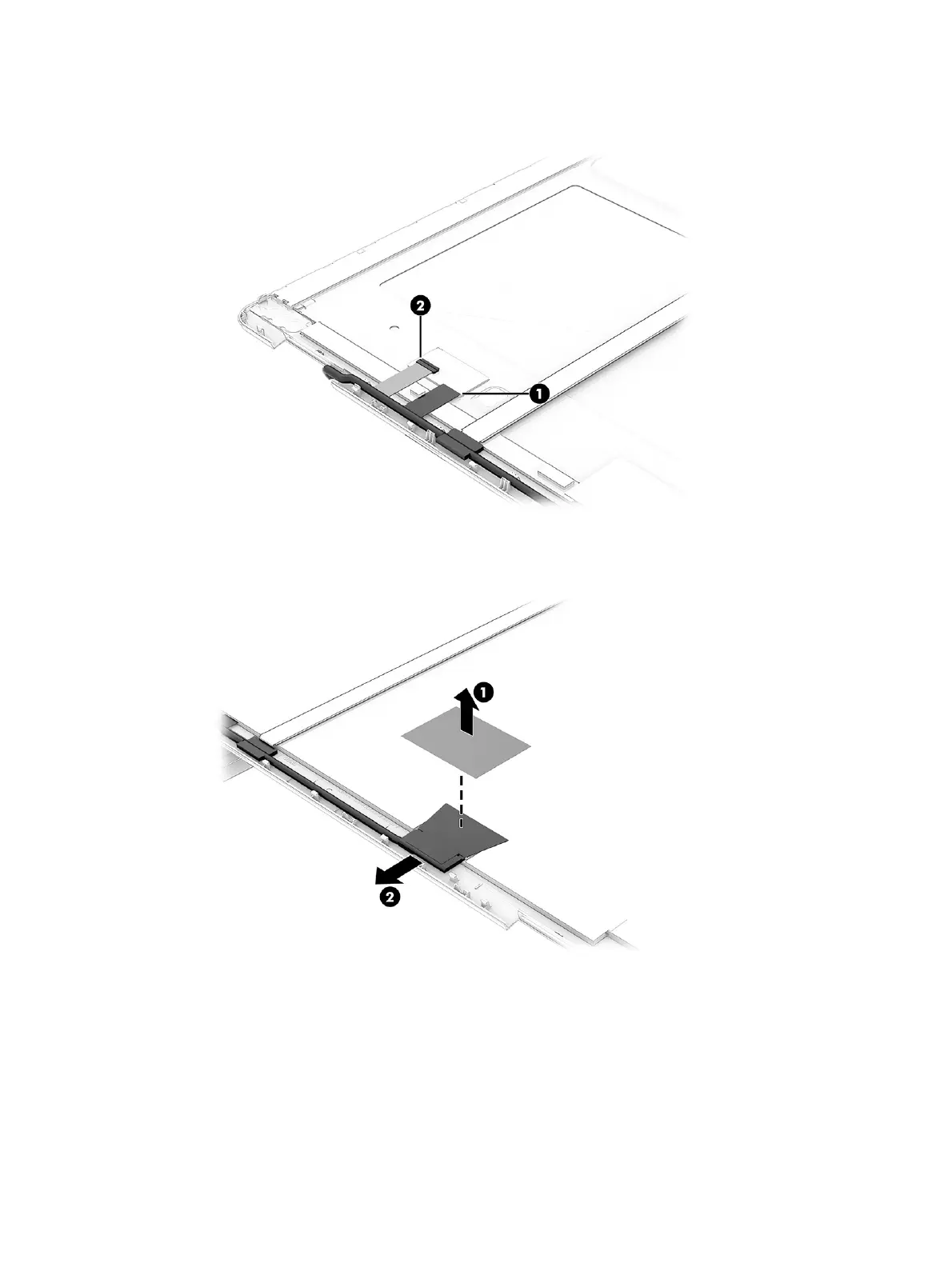

g. Remove the tape (1) from the OLED board, and then disconnect the white flat cable (2) from the
board.
h. Peel the conductive tape (1) off the connector cable.
i. Pull the cable (2) out of the connector.
72
Chapter 7 Removal and replacement procedures for authorized service provider parts
