5–20 Maintenance and Service Guide
Removal and Replacement Procedures
2. Remove the Phillips PM2.5×8.0 screw 1 that secures the
optical drive to the computer.
3. Insert a thin tool, such as a paper clip 2, into the media tray
release hole. (The optical drive media tray releases from the
optical drive.)
4. Use the media tray frame to slide the optical drive 3 out of
the computer.
5. Remove the optical drive.

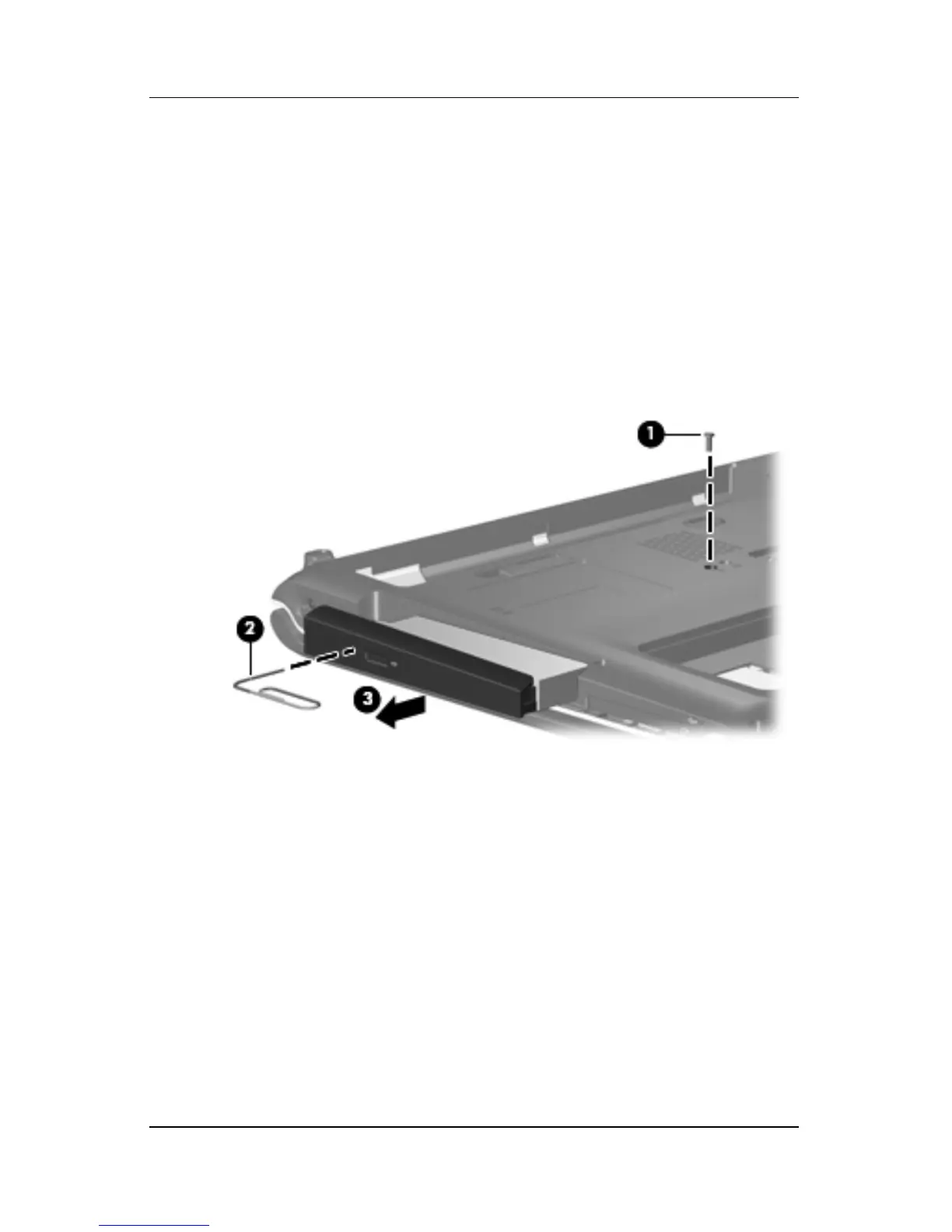

Removing the Optical Drive
