Removal and Replacement Procedures
Maintenance and Service Guide 5–21
6. Position the optical drive with the optical drive bracket
toward you.
7. Remove the two Phillips PM2.0×3.0 screws 1 that secure the
optical drive bracket to the optical drive.
8. Remove the optical drive bracket 2.

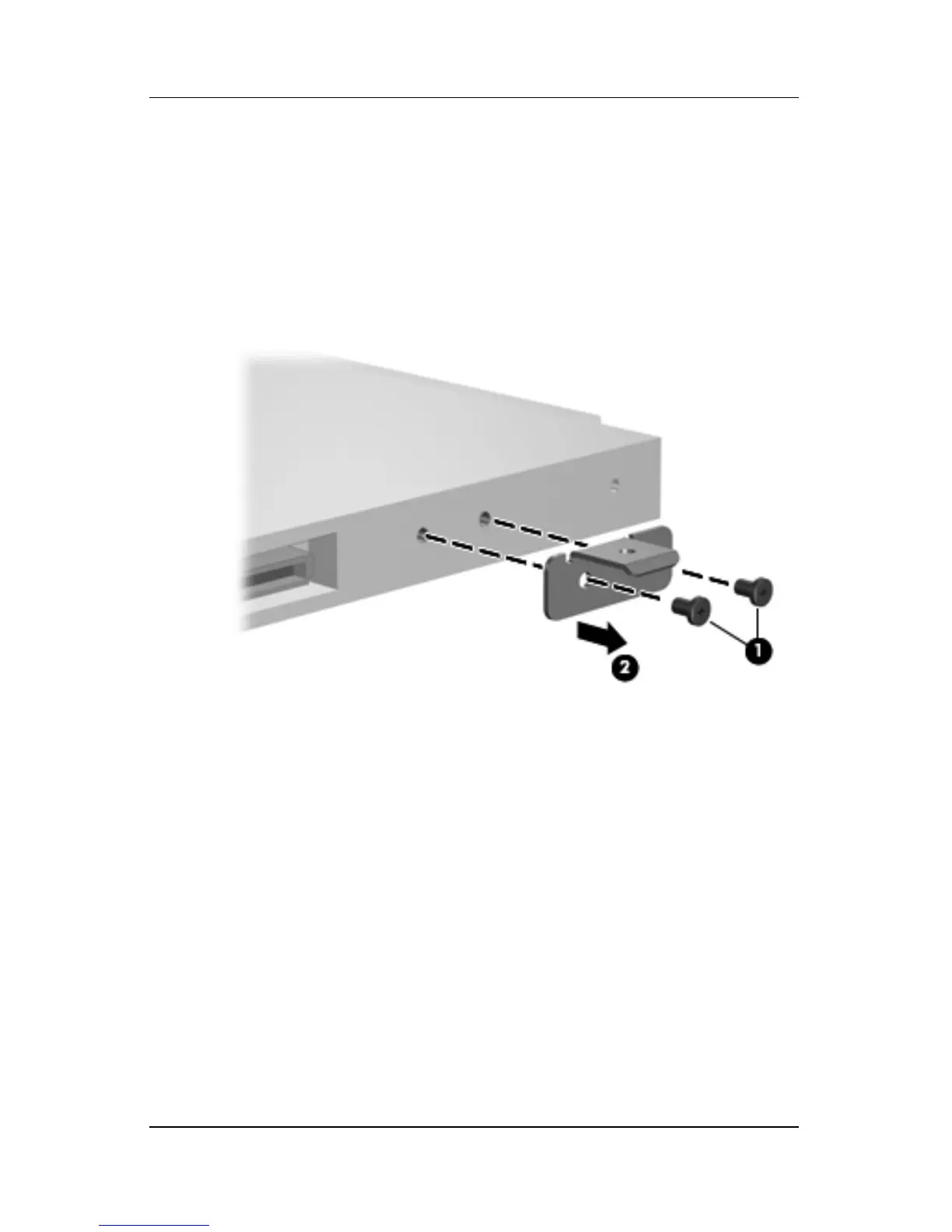

Removing the Optical Drive Bracket
Reverse the above procedure to reassemble and install the
optical drive.
