HP Pro 2110 Small Form Factor

6. Press the tab (1) on the left side of the button assembly, rotate the assembly from left to right (2),
and then pull the assembly from the chassis while threading the wire through the hole in the
chassis.

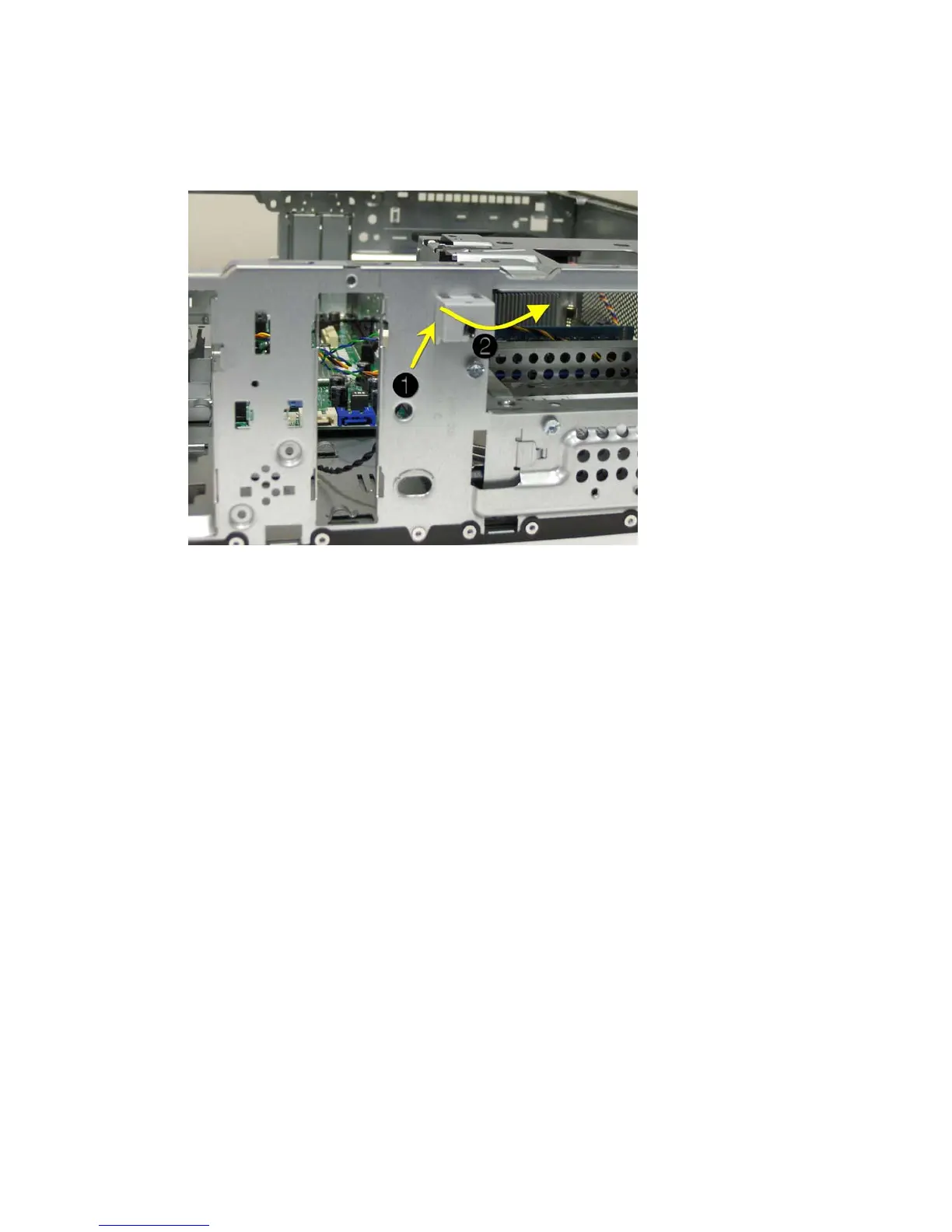

Figure 6-18 Removing the optical drive eject button
To install the optical drive eject button, reverse the removal procedures.
108 Chapter 6 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
