Power Switch/LED Assembly
1.
Prepare the computer for disassembly (
Preparation for Disassembly on page 42).
2.
Remove the access panel (
Access Panel on page 43).
3.
Lay the computer on its side with the front facing toward you.
4.
Remove the front bezel (
Front Bezel on page 44).
5.
Remove the optical drive (
Removing an Optical Drive on page 68).
6.
Remove the hard drive (
Removing the Hard Drive on page 114).
7.
Disconnect the cable from the black system board connector.
8.
Remove the cable from the clips under the hard drive cage.

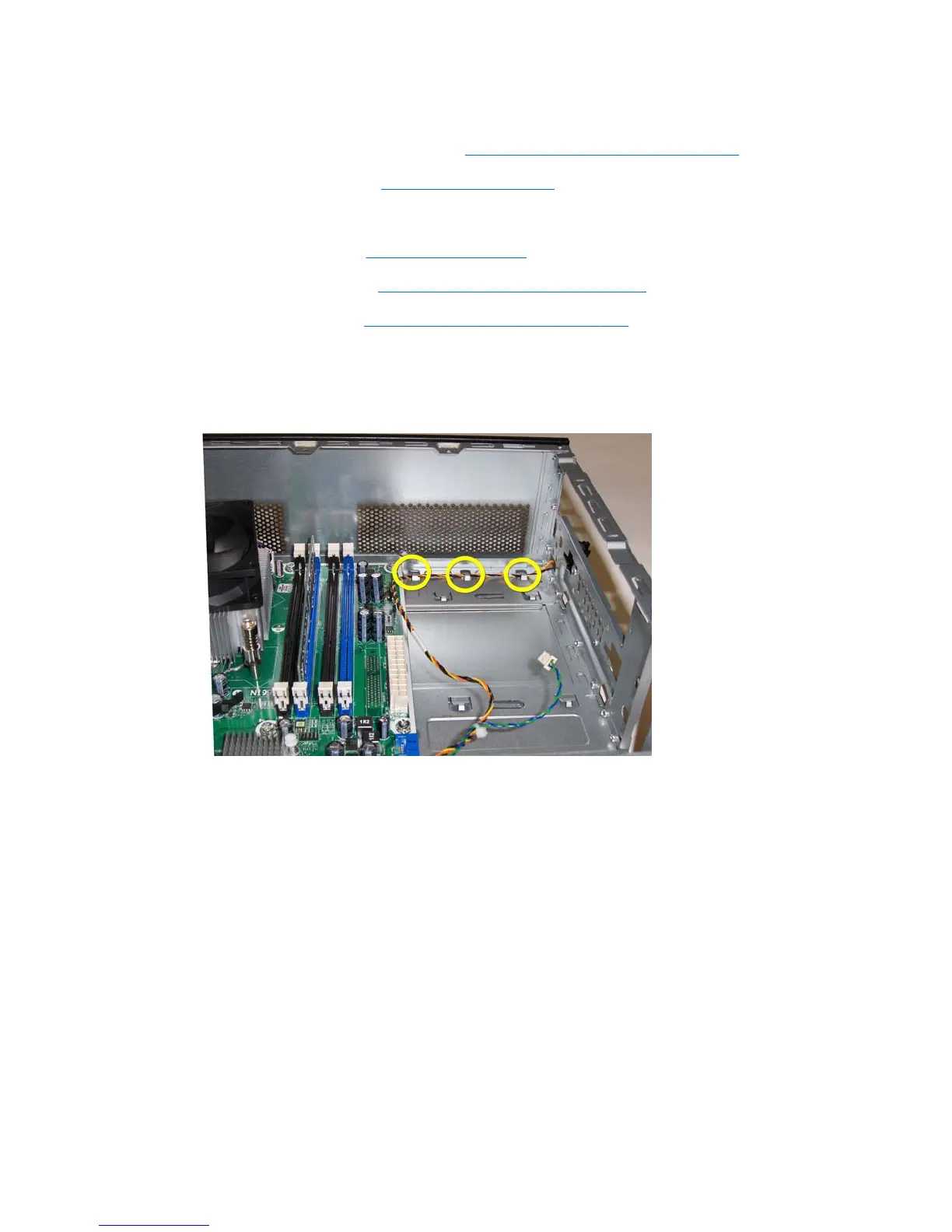

Figure 6-33 Removing the power switch cable
Power Switch/LED Assembly
119
