HP Pro 2110 Small Form Factor User Manual

Power Switch/LED Assembly
1.
Prepare the computer for disassembly (
Preparation for Disassembly on page 42).
2.
Remove the access panel (
Access Panel on page 43).
3.
Lay the computer on its side with the front facing toward you.
4.
Remove the front bezel (
Front Bezel on page 44).
5.
Remove the optical drive (
Removing an Optical Drive on page 68).
6.
Disconnect the braided cables from the black system board connector.
7.
Remove the cable from the clips in the optical drive cage.
8.

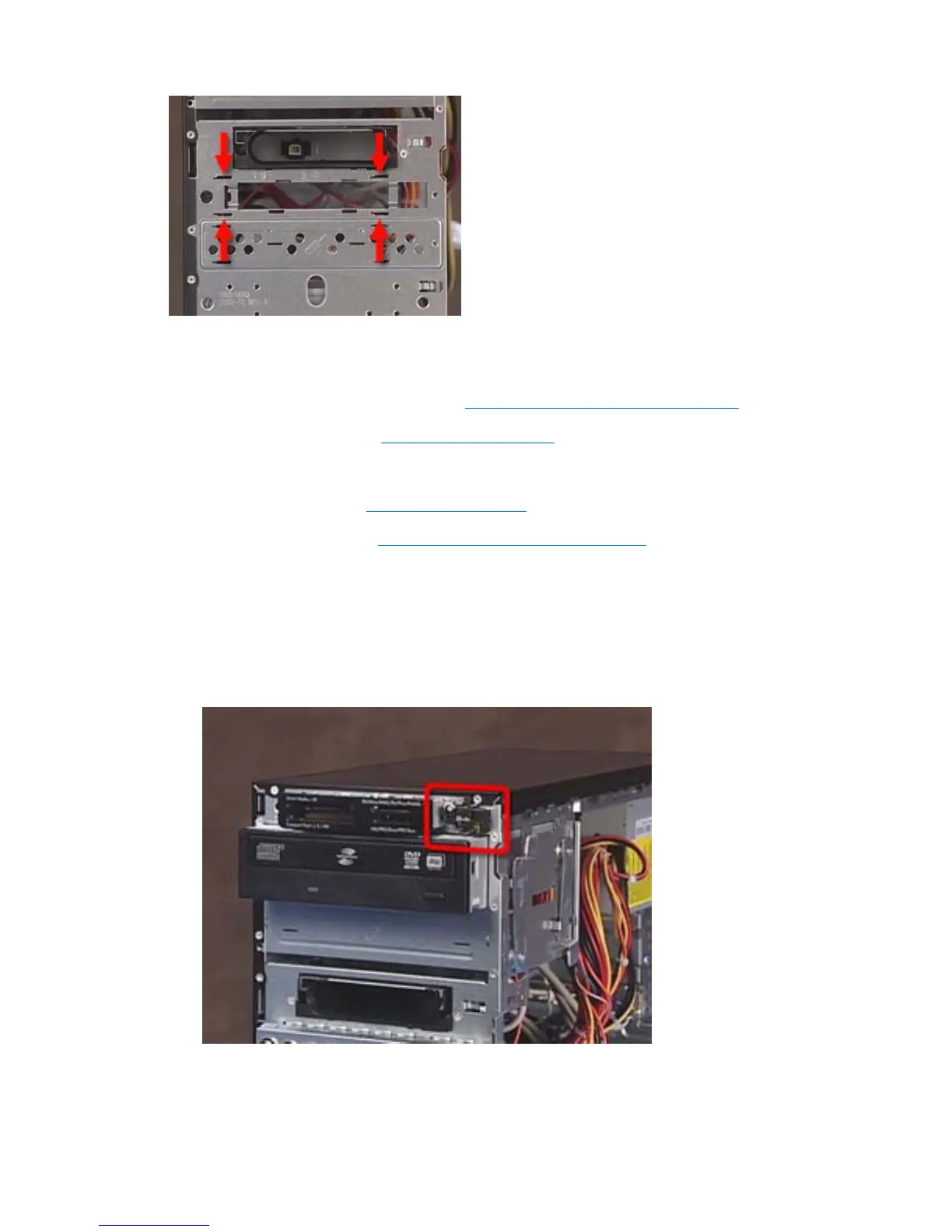

Press the tab on the top of the power switch to disengage it from the chassis, lift the switch upward
to disengage the tab at the bottom of the switch from the chassis, and then pull the power switch
away from the chassis while guiding the wires through the hole in the chassis.
Power Switch/LED Assembly
73
