System Board Drive Connections
Refer to the following illustrations and tables to identify the system board drive connectors.
System Board Drive Connections

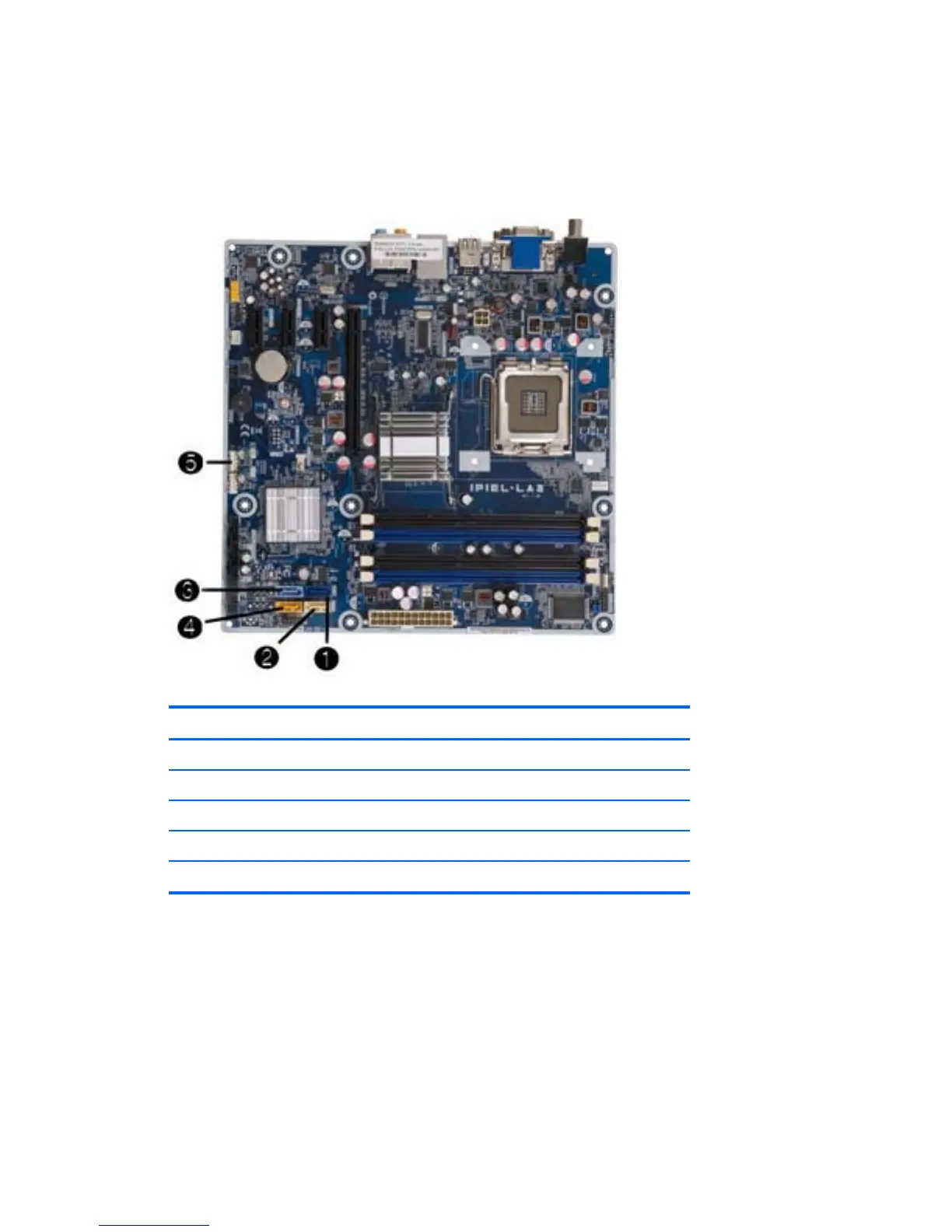

Figure 5-18 System Board Drive Connections – HP Pro 3120
Table 5-5 System Board Drive Connections – HP Pro 3120
No. System Board Connector System Board Label Color
1 SATA0 SATA0 dark blue
2 SATA1 SATA1 white
3 SATA2 SATA2 light blue
4 SATA3 SATA3 orange
5 Media Card Reader F_USB2 white
Drives
65
