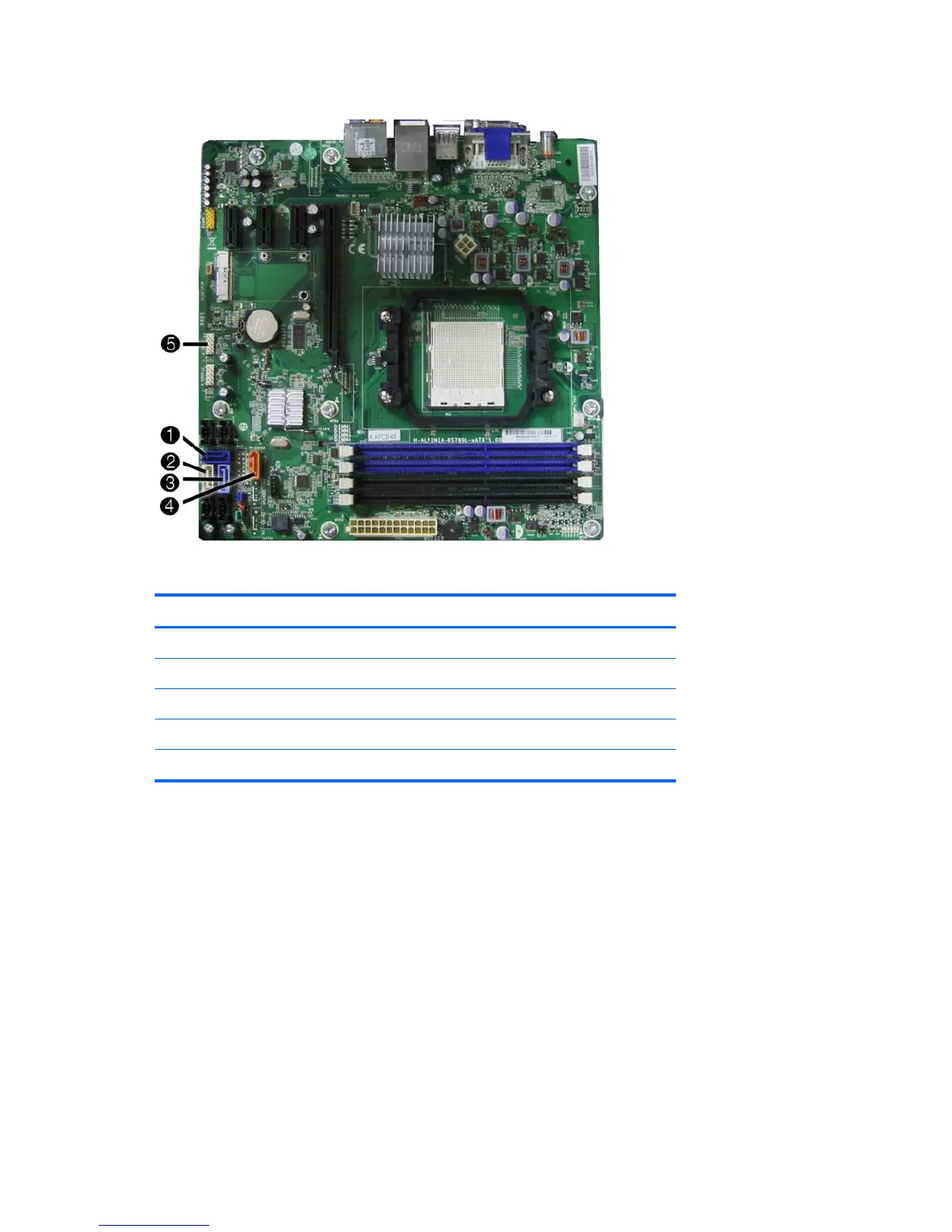

Figure 5-19 System Board Drive Connections – HP Pro 3125
Table 5-6 System Board Drive Connections – HP Pro 3125
No. System Board Connector System Board Label Color
1 SATA1 SATA1 dark blue
2 SATA2 SATA2 white
3 SATA3 SATA3 light blue
4 SATA4 SATA4 orange
5 Media Card Reader F_USB1 white
66 Chapter 5 Removal and Replacement Procedures Minitower (MT) Chassis
