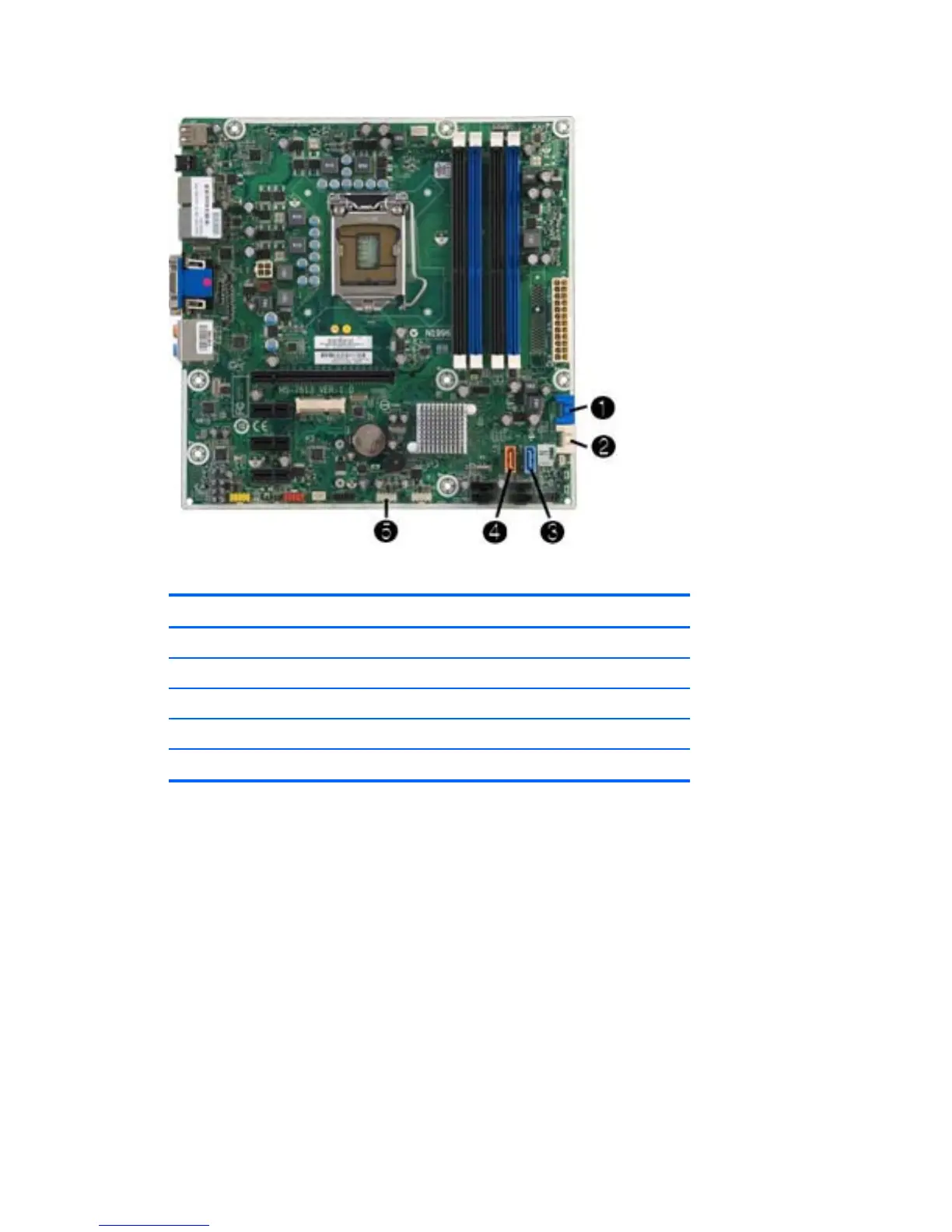

Figure 5-20 System Board Drive Connections – HP Pro 3130
Table 5-7 System Board Drive Connections – HP Pro 3130
No. System Board Connector System Board Label Color
1 SATA1 SATA1 dark blue
2 SATA2 SATA2 white
3 SATA3 SATA3 light blue
4 SATA4 SATA4 orange
5 Media Card Reader JUSB1 white
