9. Press the tab (1) on the bottom of the power switch to disengage it from the chassis, slide the
switch downward to disengage the tabs from the chassis (2), and then pull the power switch
away from the chassis while guiding the wires through the hole in the chassis.

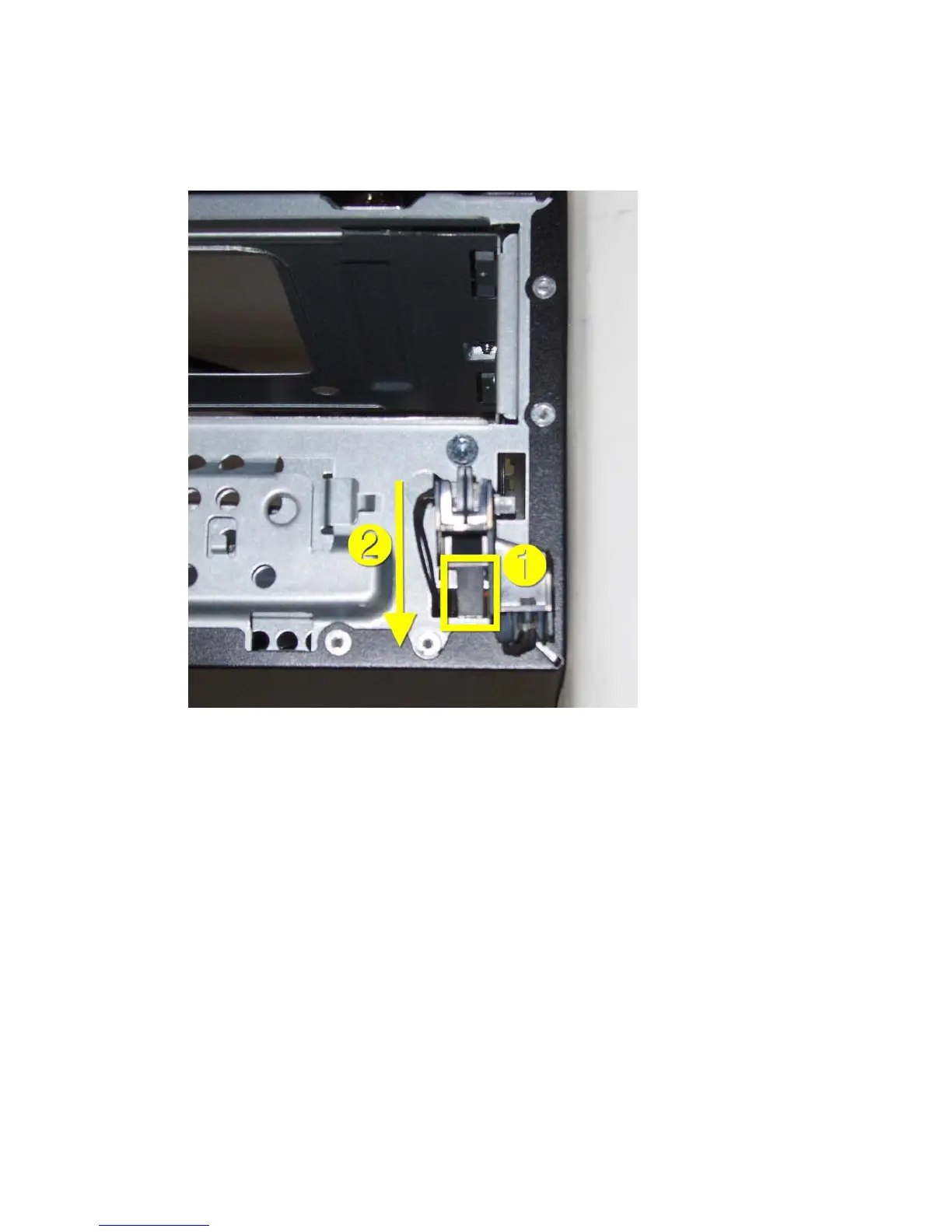

Figure 6-34 Removing the power switch
120 Chapter 6 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
