DIMM Socket Locations – HP Pro 3125
When installing memory modules:
●
If installing only one memory module, install it in DIMM3.
●
If installing 2 memory modules:
◦
2 matching memory modules - install in DIMM3 and DIMM4.
◦
2 non-matching memory modules - install in DIMM3 and DIMM4. Install the larger (GB)
module in DIMM3 and smaller (MB) module in DIMM4.
●
If installing 3 memory modules:
◦
3 matching memory modules - install in DIMM3, DIMM4, and DIMM1.
◦
2 matching memory modules and 1 non-matching memory module of smaller size (MB) than
combined matching modules (example: 2x2GB and 1x1GB) - install the matching pair in
DIMM3 and DIMM4 and smaller (MB) module in DIMM1.
●
If installing 4 memory modules:
◦
4 matching memory modules - install in DIMM3, DIMM4, DIMM1, and DIMM2.
◦
3 matching memory modules and 1 non-matching memory module of smaller size (MB) than
combined matching modules (example: 3x2GB & 1x1GB) -install the matching pair in
DIMM3, DIMM4, and DIMM1 and smaller (MB) module in DIMM2.

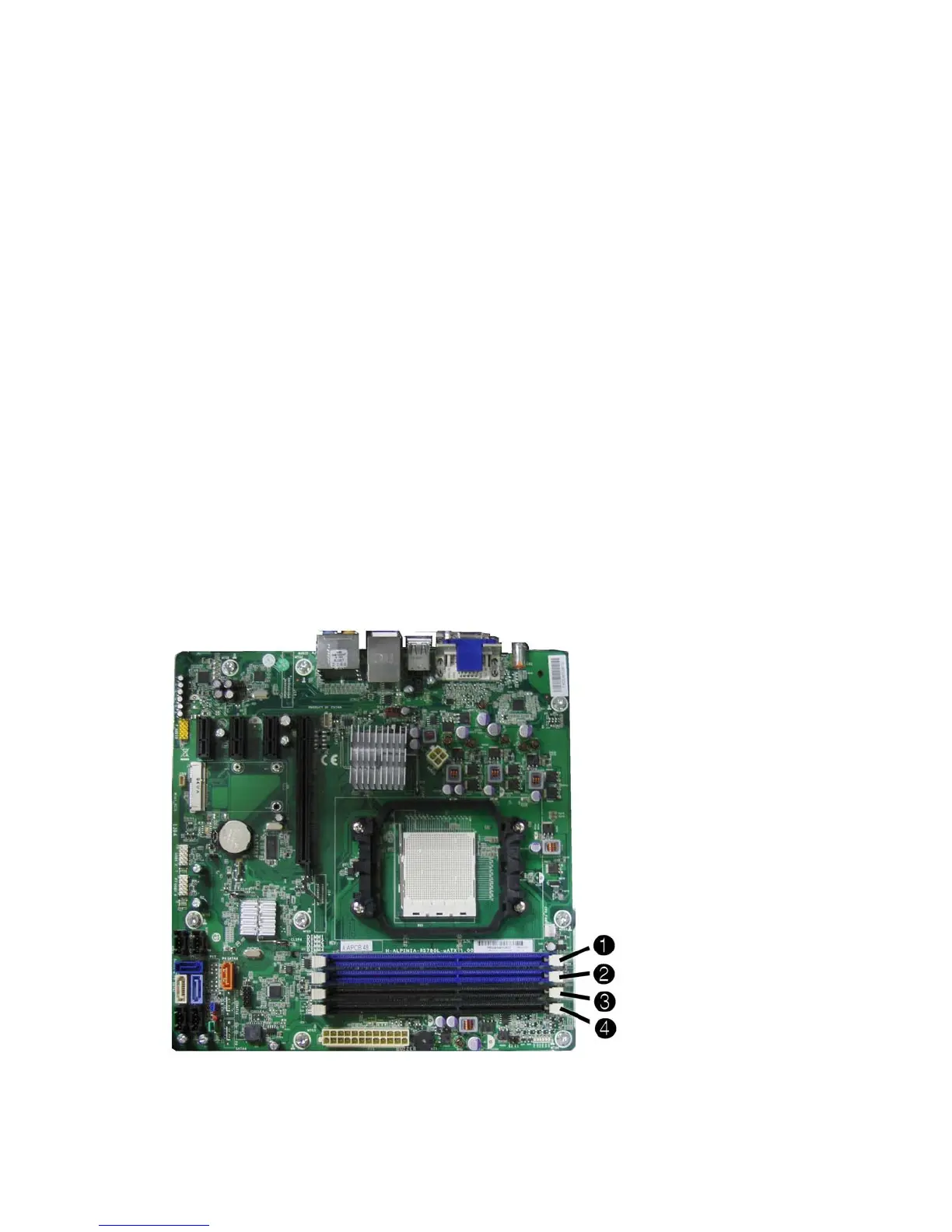

Figure 5-5 DIMM Socket Locations – HP Pro 3125
Memory
49
