Rear panel
Figure 5 and Figure 6 show components, controls, and indicators, located at the rear of the DL380 G5.
6 7 8 9 10 11 12
5 4 3 2 1 18 17 16 15 14 13
gl0072
Item
Description
Color
1
Expansion slot 1, populated with Smart
Array P400 R AID controller
—
2
Expansion slot 2
—
3
Expansion slot 3
—
4
Expansi
on slot 4
—
5
Expansion slot 5
—
6
T-10/T-15 Torx screwdriver
—
7
Extern
al option blank
—
8
NIC 2 connector
—
9
NIC 1 connector
—
10
Power supply bay 2
—
11
Power cord connectors Black
12
Power supply bay 1
—
13 iLO 2 c
onnector
—
14
Video connector Blue
15
USB connectors (2)
Black
16
Serial connector
—
17
Mouse connector
Green
18
Keyboard connector Purple

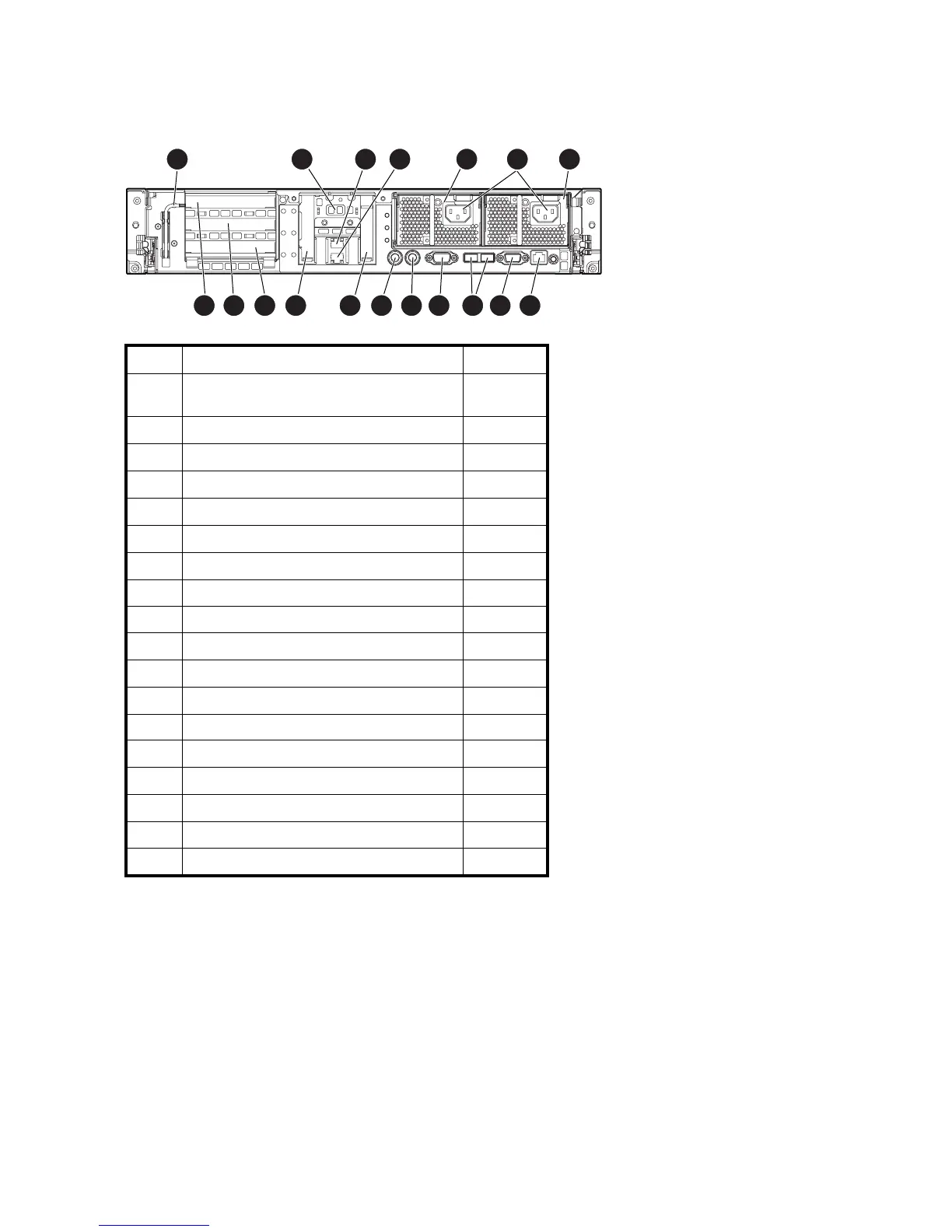

Fig
ure 5 Rear panel com ponents
28
Storage server specifications and image configurations
