Removal and replacement procedures 51
5.

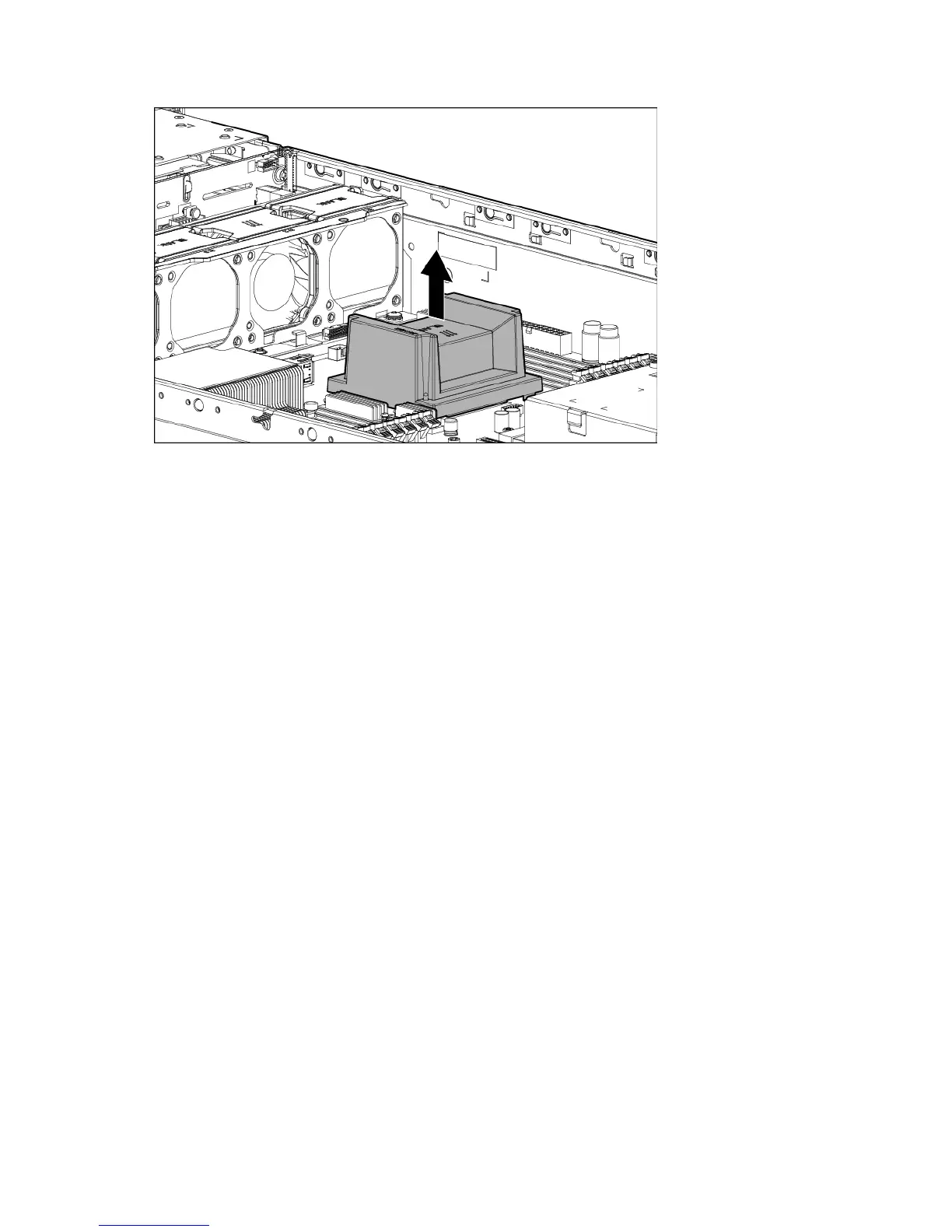

Remove the heatsink blank.
To replace the component, reverse the removal procedure.
Heatsink
To remove the component:
1. Power down the server (on page 31).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 32).
o Remove the server from the rack (on page 34).
4. Remove the access panel ("Access panel" on page 37).
5. Remove the air baffle ("Air baffle" on page 42).
6. Remove the heatsink:
a. Loosen one pair of diagonally opposite screws halfway, and then loosen the other pair of screws.
b. Completely loosen all screws in the same sequence.
