HP ProLiant DL380e Gen8 - Rear Panel Components

Component identification 89
Rear panel components

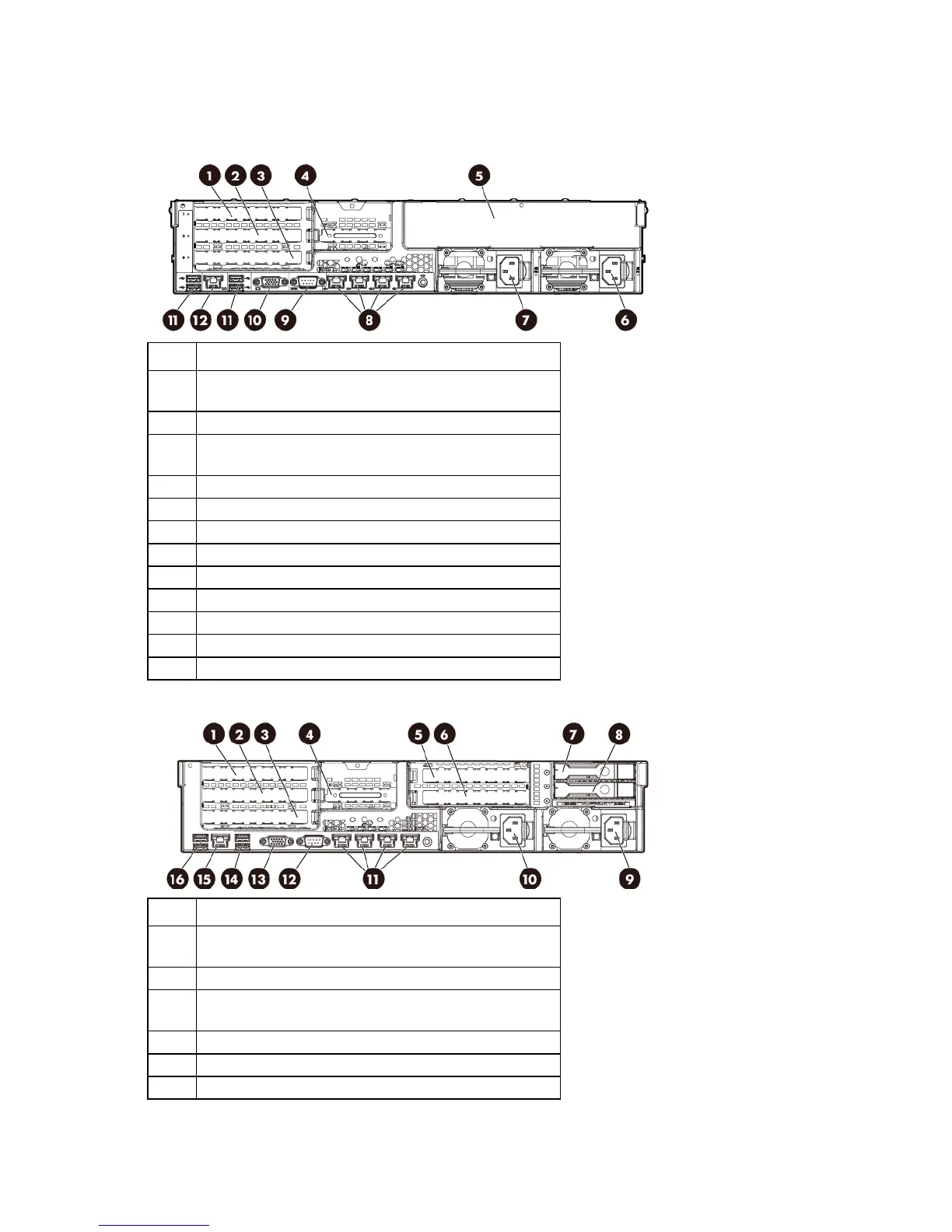

• Rear panel without the secondary PCI riser cage and rear drive options
Item Description
1
Riser board without SAS support: Slot 1 PCIe3 x8 (4, 1)*
Riser board with SAS support: Slot 1 PCIe3 x16 (8, 4, 1)*
2
Slot 2 PCIe3 x16 (8, 4, 1)*
3
Only for riser board without SAS support: Slot 3 PCIe3 x8
(8, 4, 1)*
4
Slot 4 PCIe2 x8 (4, 1)*
5
LFF drive blank
6
Power supply 1
7
Power supply 2 (optional)
8
NIC connectors (4-1)
9
Serial connector
10
Video connector
11
USB 2.0 connectors
12
iLO 4 connector
• Rear panel with the secondary PCI riser cage and 2 SFF rear drive options
Item Description
1
Riser board without SAS support: Slot 1 PCIe3 x8 (4, 1)*
Riser board with SAS support: Slot 1 PCIe3 x16 (8, 4, 1)*
2
Slot 2 PCIe3 x16 (8, 4, 1)*
3
Only for riser board without SAS support: Slot 3 PCIe3 x8
(8, 4, 1)*
4
Slot 4 PCIe2 x8 (4, 1)*
5
Slot 5 PCIe3 x16 (16, 8, 4, 1) (optional)*
6
Slot 6 PCIe3 x16 (8, 4, 1) (optional)*
