Component identification 90
Item Description
7
Rear SFF drive 1 (optional)
8
Rear SFF drive 2 (optional)
9
Power supply 1
10
Power supply 2 (optional)
11
NIC connectors (4-1)
12
Serial connector
13
Video connector
14
USB 2.0 connectors
15
iLO 4 connector
16
USB 2.0 connectors

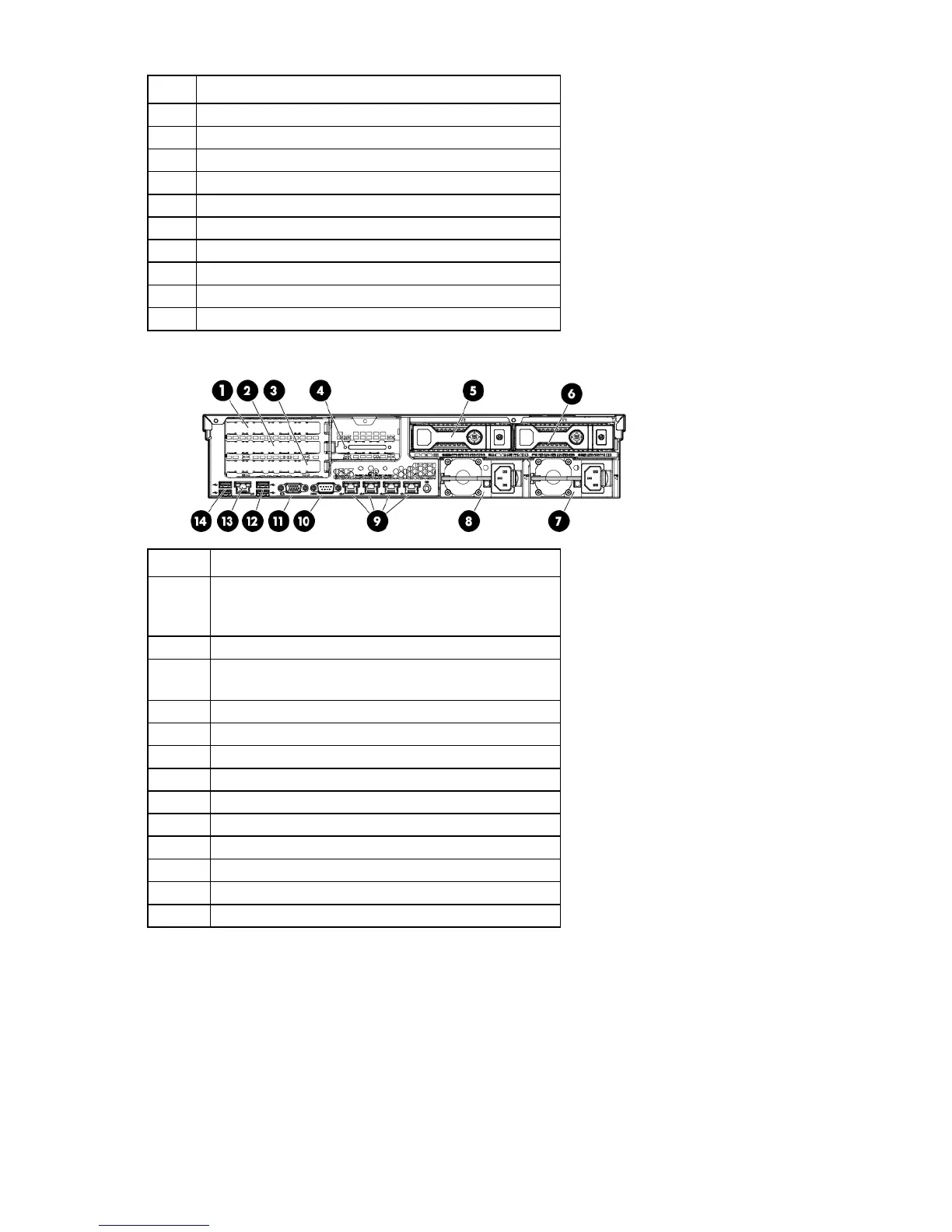

• Rear panel with the 2 LFF rear drive option
Item Description
1
Riser board without SAS support: Slot 1 PCIe3 x8 (4, 1)*
Riser board with SAS support: Slot 1 PCIe3 x16 (8, 4,
1)*
2
Slot 2 PCIe3 x16 (8, 4, 1)*
3
Only for riser board without SAS support: Slot 3 PCIe3 x8
(8, 4, 1)*
4
Slot 4 PCIe2 x8 (4, 1)*
5
Rear LFF drive 1 (optional)
6
Rear LFF drive 2 (optional)
7
Power supply 1
8
Power supply 2 (optional)
9
NIC connectors (4-1)
10
Serial connector
11
Video connector
12
USB 2.0 connectors
13
iLO 4 connector
* For more information on the riser board slots supported by the onboard PCI riser connectors, see "PCIe riser board slot
definitions (on page 91)."
