HP ProLiant DL380e Gen8 Maintenance And Service Guide

Component identification 91

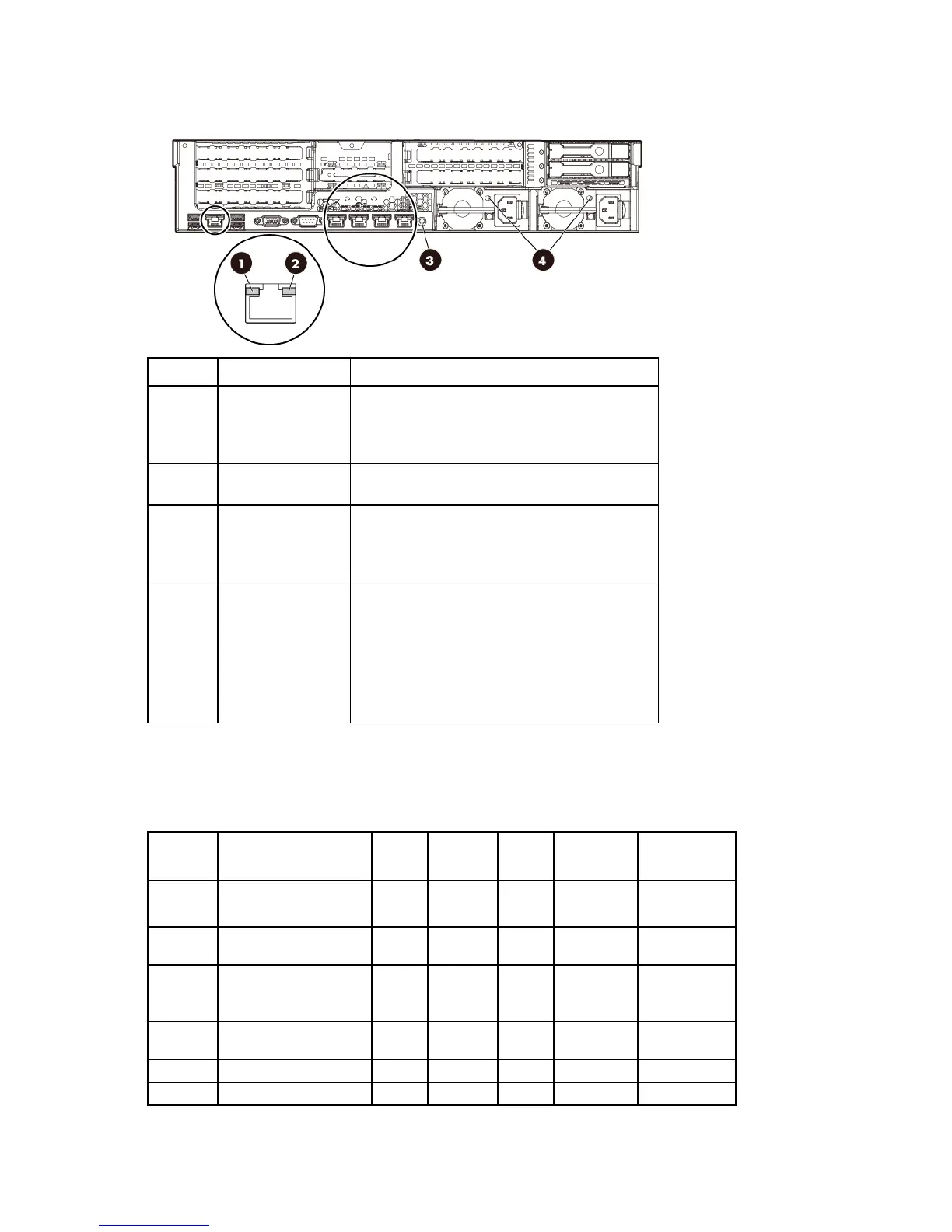

Rear panel LEDs and buttons
Item Description Status
1
NIC status LED Solid green = Link to network
Flashing green (1 Hz/cycle per sec) = Network
active
Off = No network activity
2
NIC link LED Solid green = Link exists
Off = No link exists
3
UID button/LED Solid blue = Activated
Flashing blue (1 Hz/cycle per sec) = Remote
management or firmware upgrade in progress
Off = Deactivated
4
Power supply LED Solid green = Normal
Off = One or more of the following conditions
exists:
•
Power is unavailable
•
Power supply failed
•
Power supply is in standby mode
•
Power supply error
PCIe riser board slot definitions
Slot
number
Riser board option Type Length Height
Connector
link width
Negotiable
link width
1
Riser board without SAS
support
PCIe3 Full Full x8 x4
Riser board with SAS
support
PCIe3 Full Full x16 x8
2
Riser board options with
and without SAS
support
PCIe3 Half Full x16 x8
3
Riser board without SAS
support
PCIe3 Half Full x8 x8
4
Low-profile riser board PCIe2 Half Half x8 x4
5
PCIe x16 riser board* PCIe3 Full Full x16 x16

HP ProLiant DL380e Gen8 Specifications

General

Bus type	QPI
Stepping	M1
FSB Parity	No
Scalability	2S
Processor code	SR0LS
Processor cache	10 MB
Processor cores	4
Processor model	E5-2403
System bus rate	6.4 GT/s
Processor series	Intel Xeon E5-2400
Processor socket	LGA 1356 (Socket B2)
Processor codename	Sandy Bridge EN
Motherboard chipset	Intel C600
Processor frequency	1.8 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor package size	45 x 42.5 mm
Processor front side bus	- MHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Supported instruction sets	AVX
Thermal Design Power (TDP)	80 W
Number of processors installed	1
Maximum number of PCI Express lanes	24
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	25 GB/s
Maximum internal memory supported by processor	375 GB
Memory slots	12
Internal memory	4 GB
Memory clock speed	1333 MHz
Maximum internal memory	384 GB
Memory layout (slots x size)	1 x 4 GB
HDD size	- \
RAID levels	0, 1, 0+1, 5, 5+0
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
Total storage capacity	0 GB
Maximum storage capacity	- TB
Number of HDDs installed	0
Number of HDDs supported	8
Cabling technology	10/100/1000Base-T(X)
USB 2.0 ports quantity	6
PCI Express slots version	3.0
Power supply	460 W
Redundant power supply (RPS) support	-
Chassis type	Rack (2U)
Processor ARK ID	64615
Intel Identity Protection Technology version	0.00

Weight and Dimensions

Depth	698.5 mm
Width	445.5 mm
Height	87.4 mm
Weight	42990 g
