Removal and replacement procedures 58
5.
Disconnect all cables connected to the expansion board.

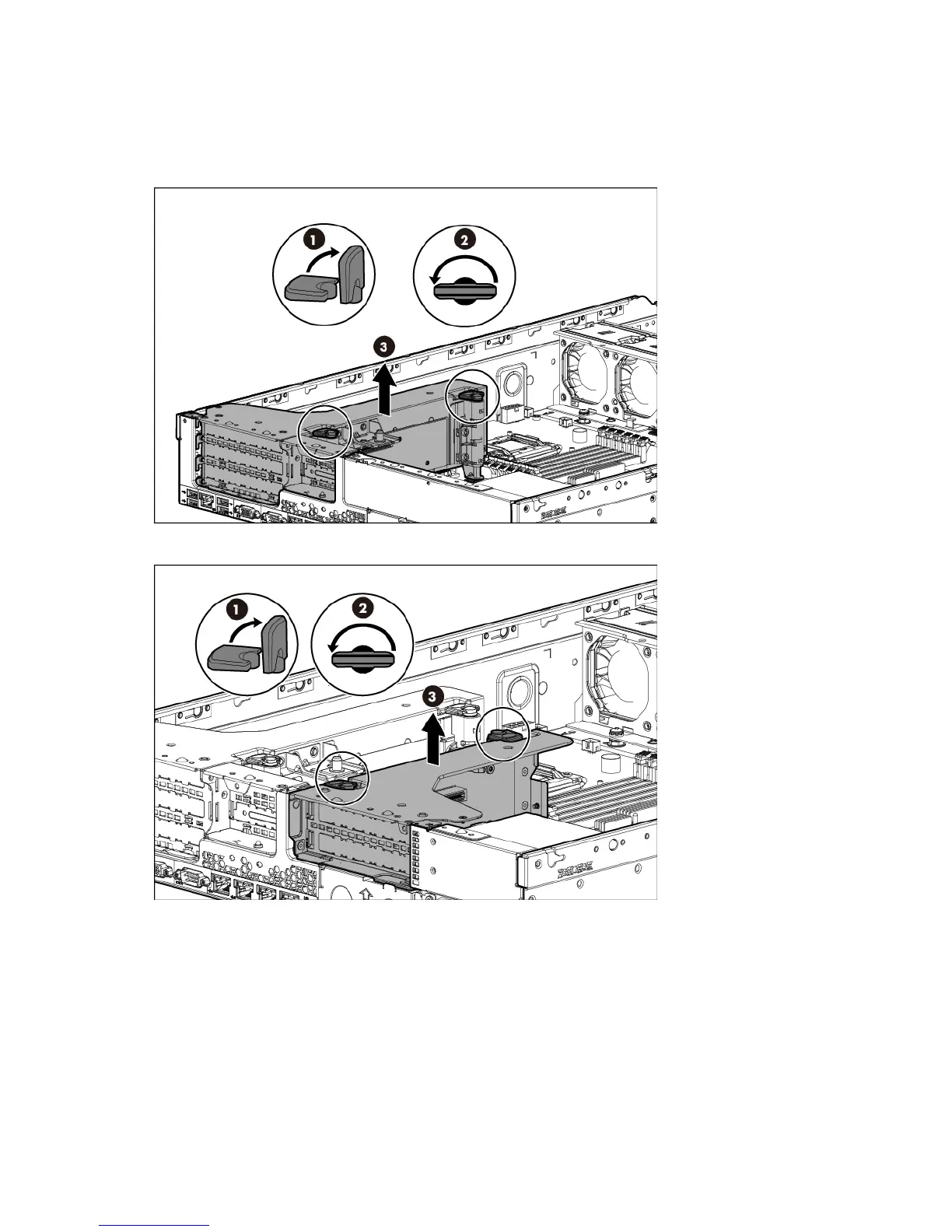

6. Lift the release tabs, and then rotate them 180° counterclockwise.
7. Lift the PCI riser cage to unseat the PCI riser boards.
o Primary PCI riser cage
o Secondary PCI riser cage (optional)
To replace the component, reverse the removal procedure.
GPU retaining bracket
To remove the component:
1. Power down the server (on page 31).
2. Remove all power:
a. Disconnect each power cord from the power source.
