Removal and replacement procedures 73
CAUTION: To avoid damage to the processor, do not touch the bottom of the processor,
especially the contact area.

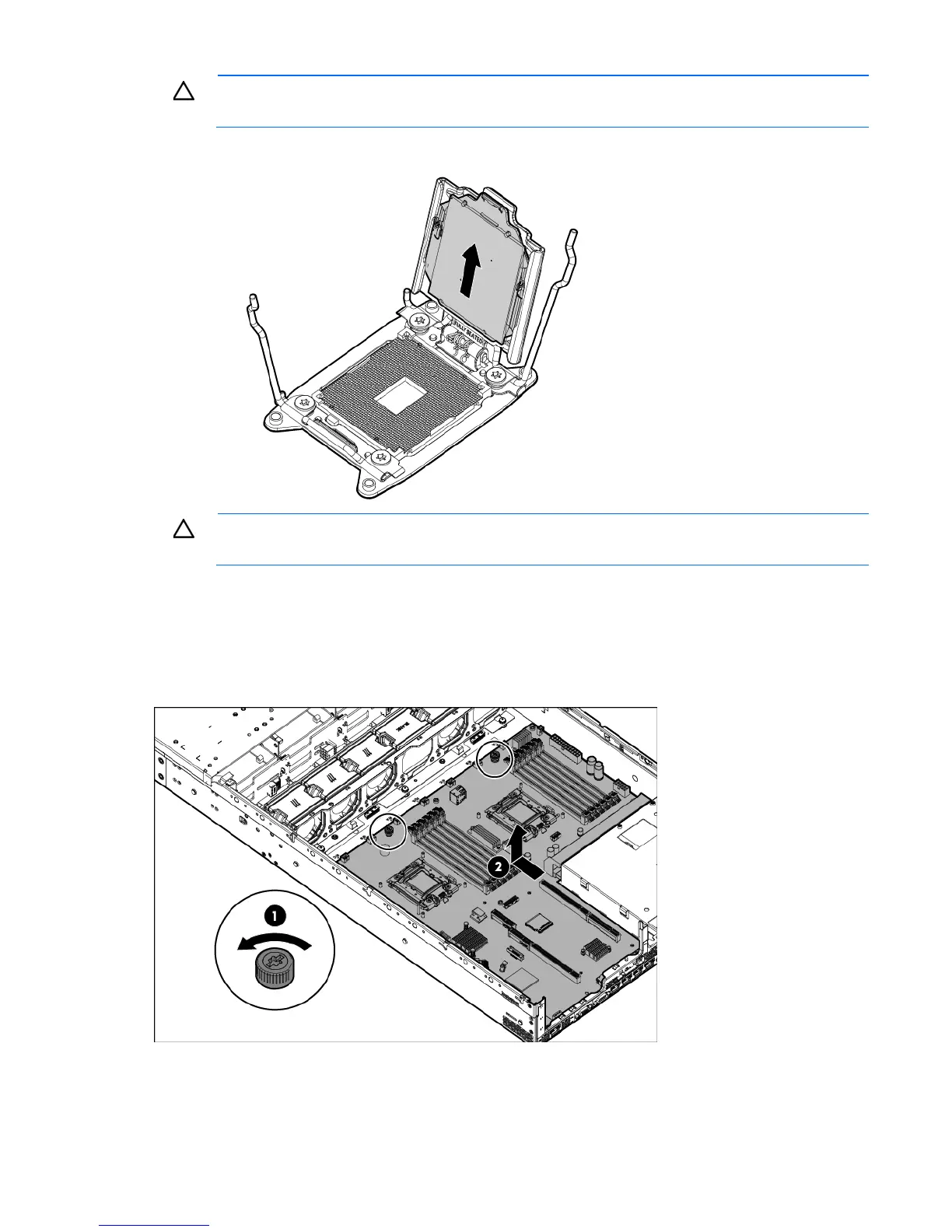

13. Remove the processor from the processor retaining bracket.
CAUTION: When returning a damaged system board to HP, always install all processor socket
covers to prevent damage to the processor sockets and system board.
14. If the FBWC module is installed on the system board, remove the FBWC module ("FBWC module" on
page 65).
15. Remove the system board assembly:
a. Loosen the system board thumbscrews.
b. Use the tray handles to lift the system board out of the chassis.
