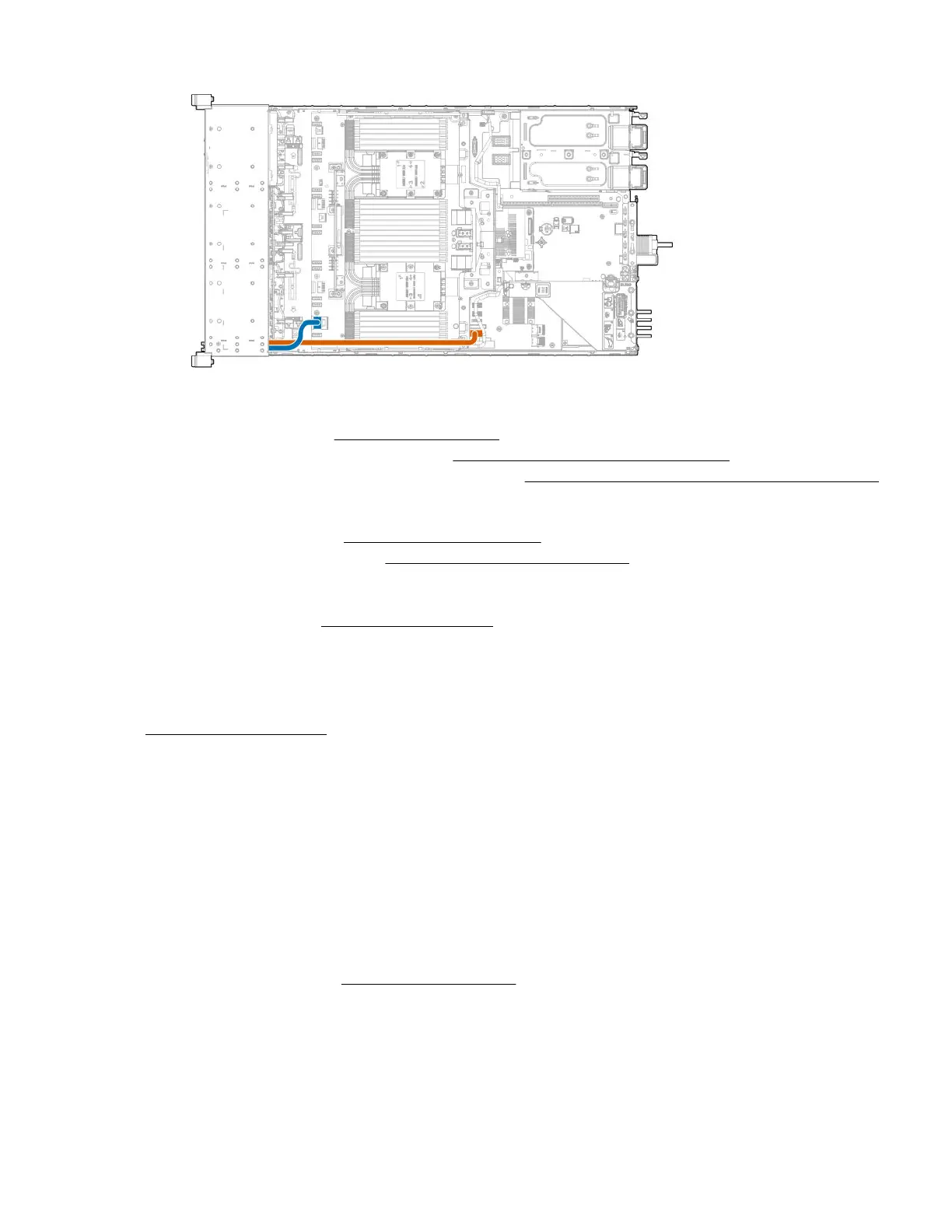

10. If removed, do the following:
a. Install the air baffle (Installing the air baffle on page 43).
b. Install the processor mezzanine tray (Installing a processor mezzanine tray on page 87).
c. Install the 2P pass-through performance board (Installing a 2P pass-through performance board
on page 88).
11. Install the fan cage.
12. Install the access panel (Installing the access panel on page 41).
13. Install the server into the rack (Installing the server into the rack on page 34).
14. Connect each power cord to the server.
15. Connect each power cord to the power source.
16. Power up the server (Powering up the server on page 38).
Installing an eight-bay SFF HDD drive cage
The eight-bay SFF HDD drive cage can be installed in the following drive boxes in the front of the server. See
"Front panel components on page 7."
• Drive box 1
• Drive box 2
• Drive box 3
Prerequisites
Before installing this option, be sure that you have the following:
• T-10 Torx screwdriver
• The components included with the hardware option kit
Procedure
1. Power down the server (Power down the server on page 38).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
Installing an eight-bay SFF HDD drive cage 51
