Removal and Replacement Procedures
To remove a DIMM:
1. Power down the server. Refer to “Powering Down the Server” ea rlier in this chapter.
2. Extend the server from the rack. Refer to “Extending the Server from the Rack” earlier in
this chapter.
3. Remove the access panel. Refer to “R emoving the Access Panel” earlier in this chapter.
4. Remove the processor memory board. Refer to “Proces sor Memory Boards” earli er in
this chapter.
5. Remove the DIMM.

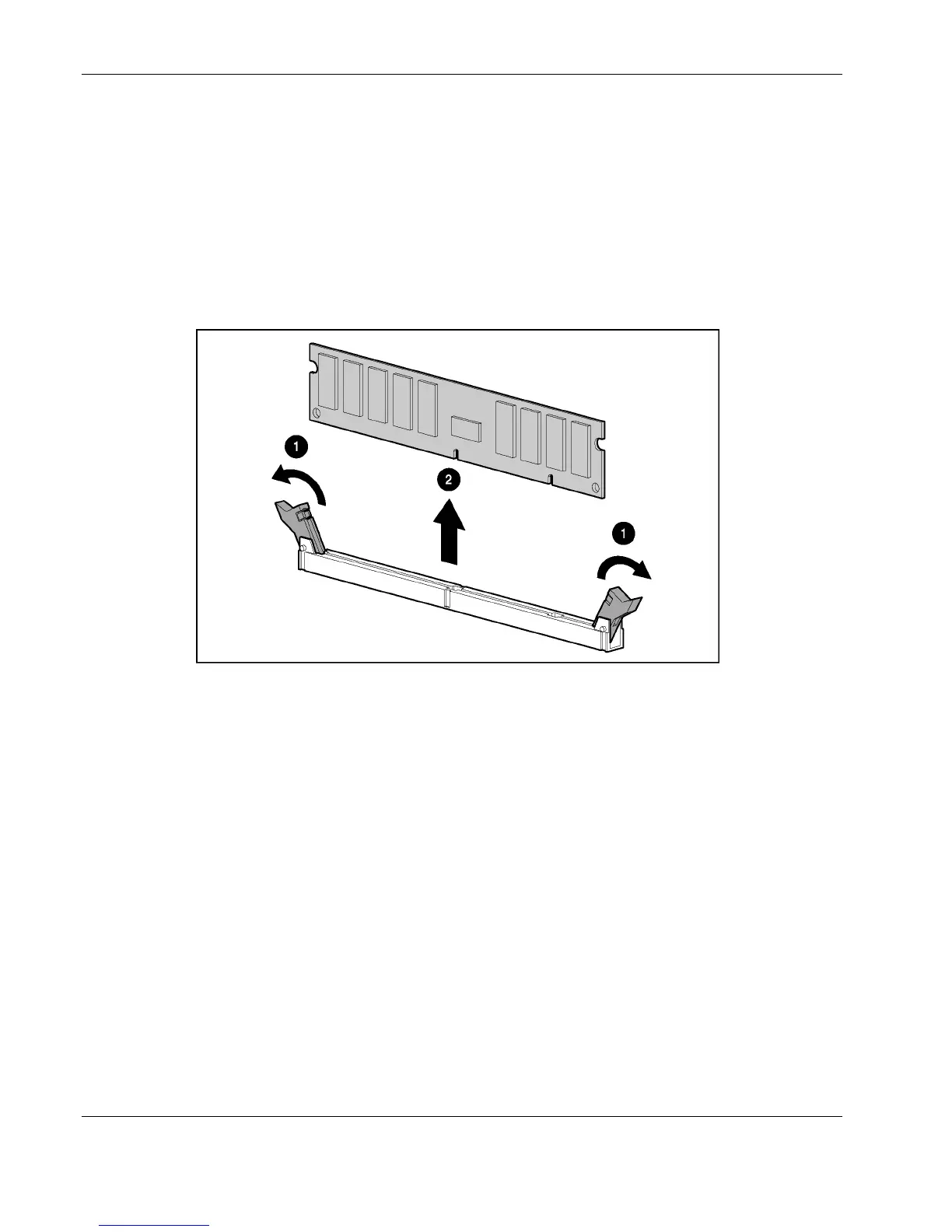

Figure 2-15: Removing a DIMM
IMPORTANT: Be sure all DIMM retention clips are in the closed/locked position before reinstalling
processor memory board into the system.
Reverse steps to install a DIMM.
2-18 HP ProLiant DL585 Server Maintenance and Service Guide
