Removal and Replacement Procedures
15. Cut the four tie-wraps securing the AC filter cable to the chassis.

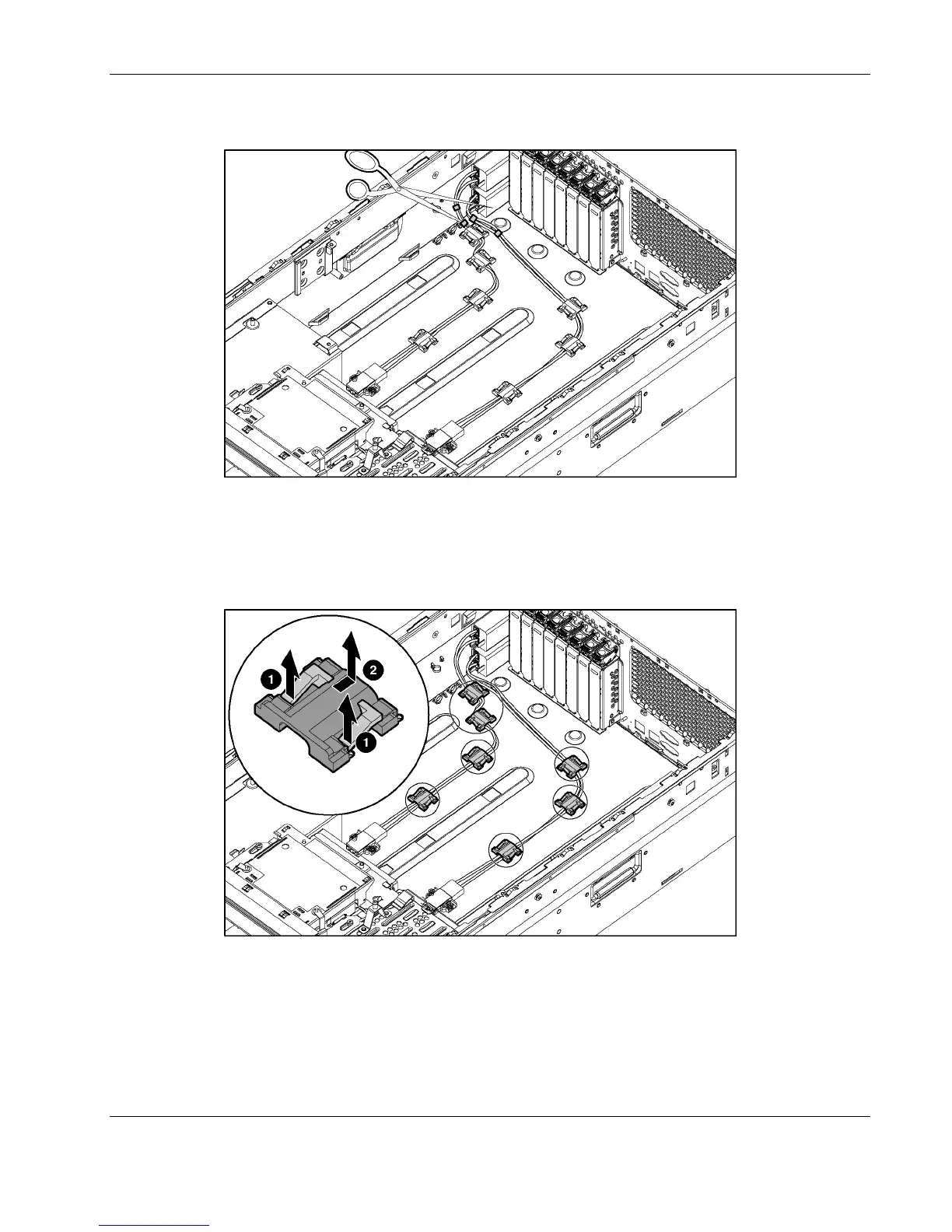

Figure 2-39: Cutting the cable tie-wraps
16. Remove the seven cable clips:
a. Lift to disengage the cable clip (1).
b. Slide the clip forward, and lift it off the chassis (2).
Figure 2-40: Removing the cable clips
HP ProLiant DL585 Server Maintenance and Service Guide 2-47
