Removal and Replacement Procedures
17. Grasping the two handles, lift the side with the processor memory board slots first, tilting
the board to a 45° angle (1).
18. Lift the entire system board out of the chassis (2).
19. Check the switch settings on the old board against the settings in chapter 4 to be sure that
they are in the correct positions.

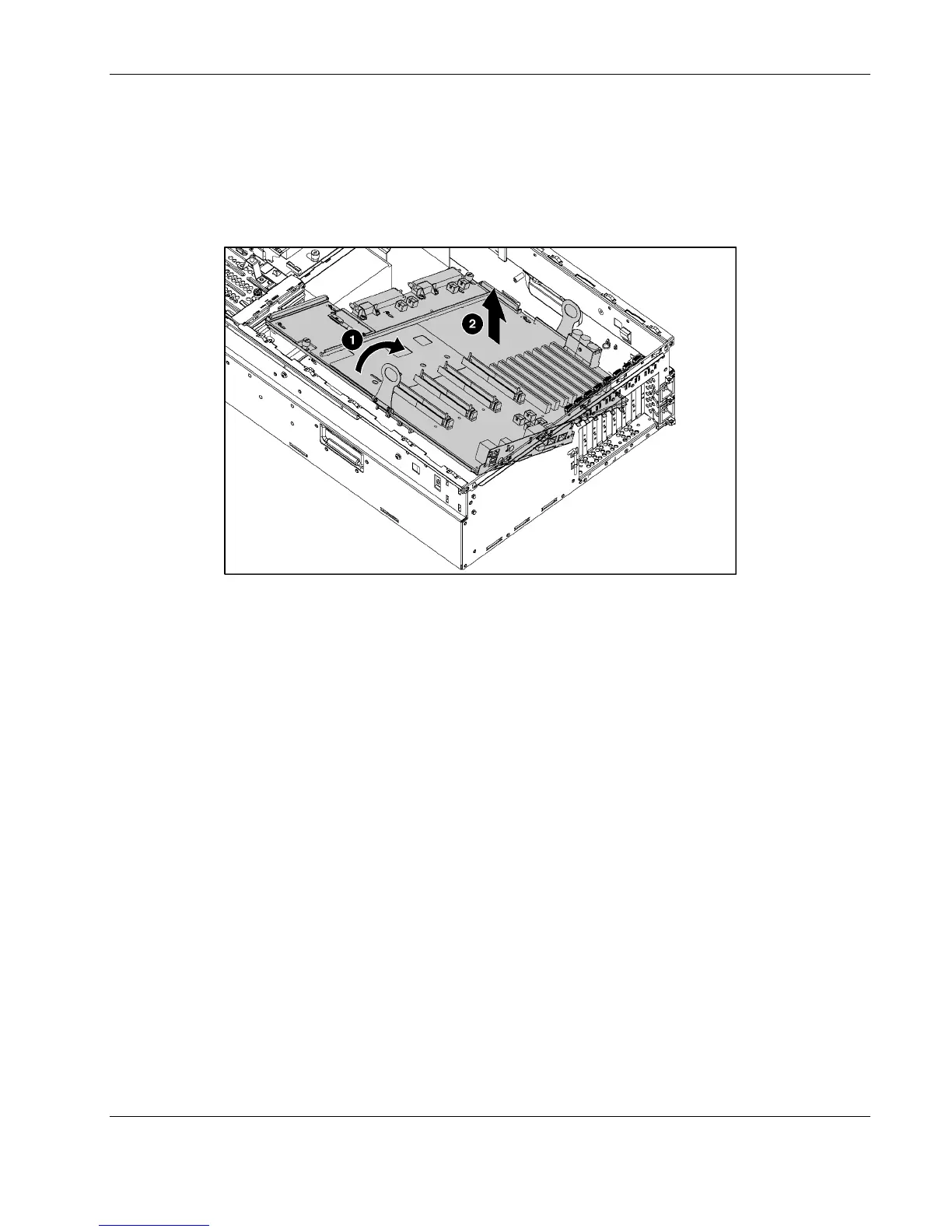

Figure 2-38: Removing the system board from the chassis
Reverse the steps to replace the system board.
IMPORTANT: The server serial number must be re-entered through RBSU after replacing the system
board. Refer to the “Re-entering the Server Serial Number” section.
HP ProLiant DL585 Server Maintenance and Service Guide 2-45
