HP ProLiant DL585

Server Component Identification
Rear Panel

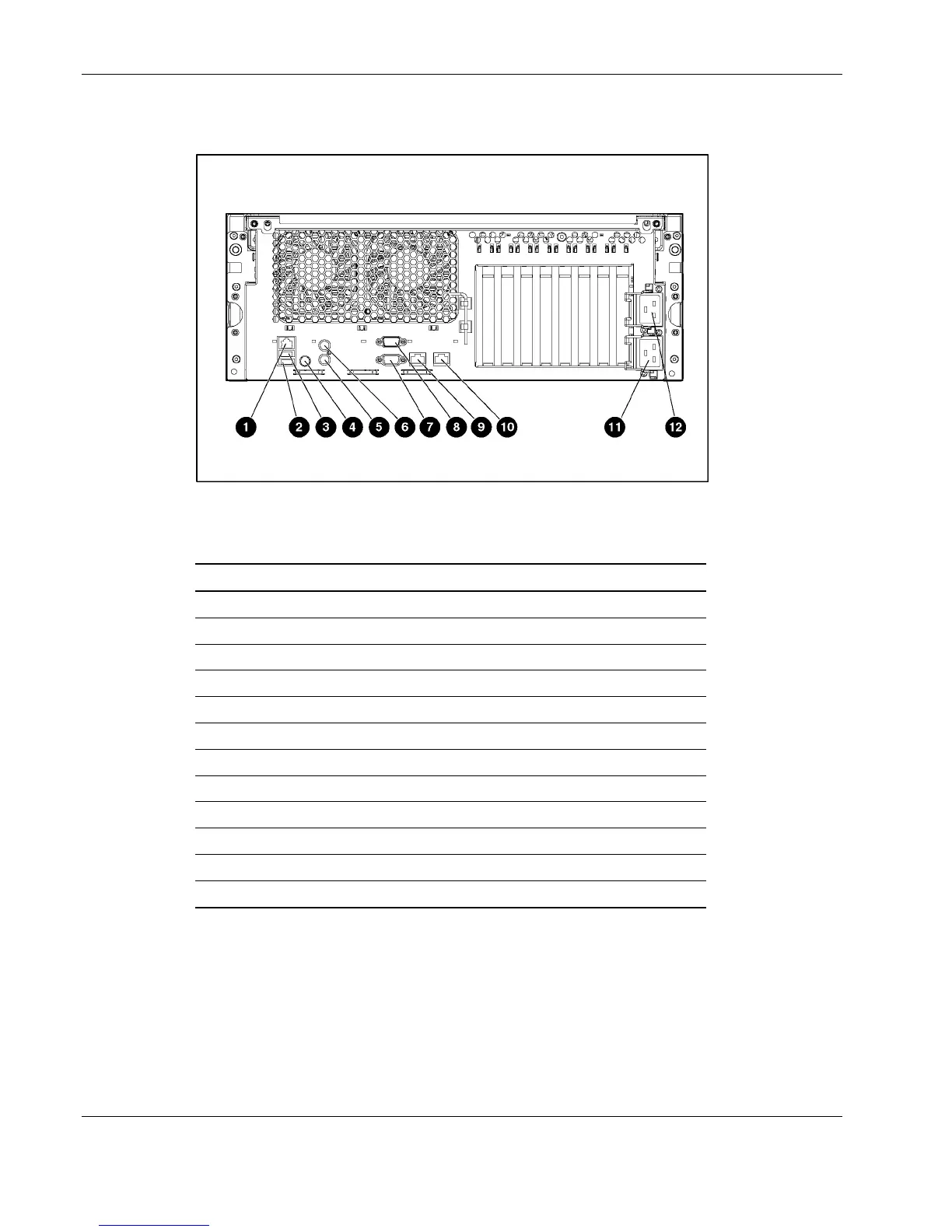

Figure 4-1: Rear panel components
Table 4-1: Rear Panel Components
Item Description
1 Integrated Lights-Out Manager connector
2 USB connector 1
3 USB connector 2
4 Rear Unit Identification button and LED
5 Keyboard connector
6 Mouse connector
7 Video connector
8 Serial connector
9 NIC 2
10 NIC 1
11 AC inlet 1(primary)
12 AC inlet 2 (optional)
