HP ProLiant DL585

Removal and Replacement Procedures
Power Button/LED assembly
To remove the power button/LED assembly:
1. Power down the server. Refer to “Powering Down the Server” ea rlier in this chapter.
2. Extend the server from the rack. Refer to “Extending the Server from the Rack” earlier in
this chapter.
3. Remove the access panel. Refer to “R emoving the Access Panel” earlier in this chapter.
4. Unplug the cable from the diagnostic display board (1).
5. Push on the locking tab until the opposite side comes out (2).

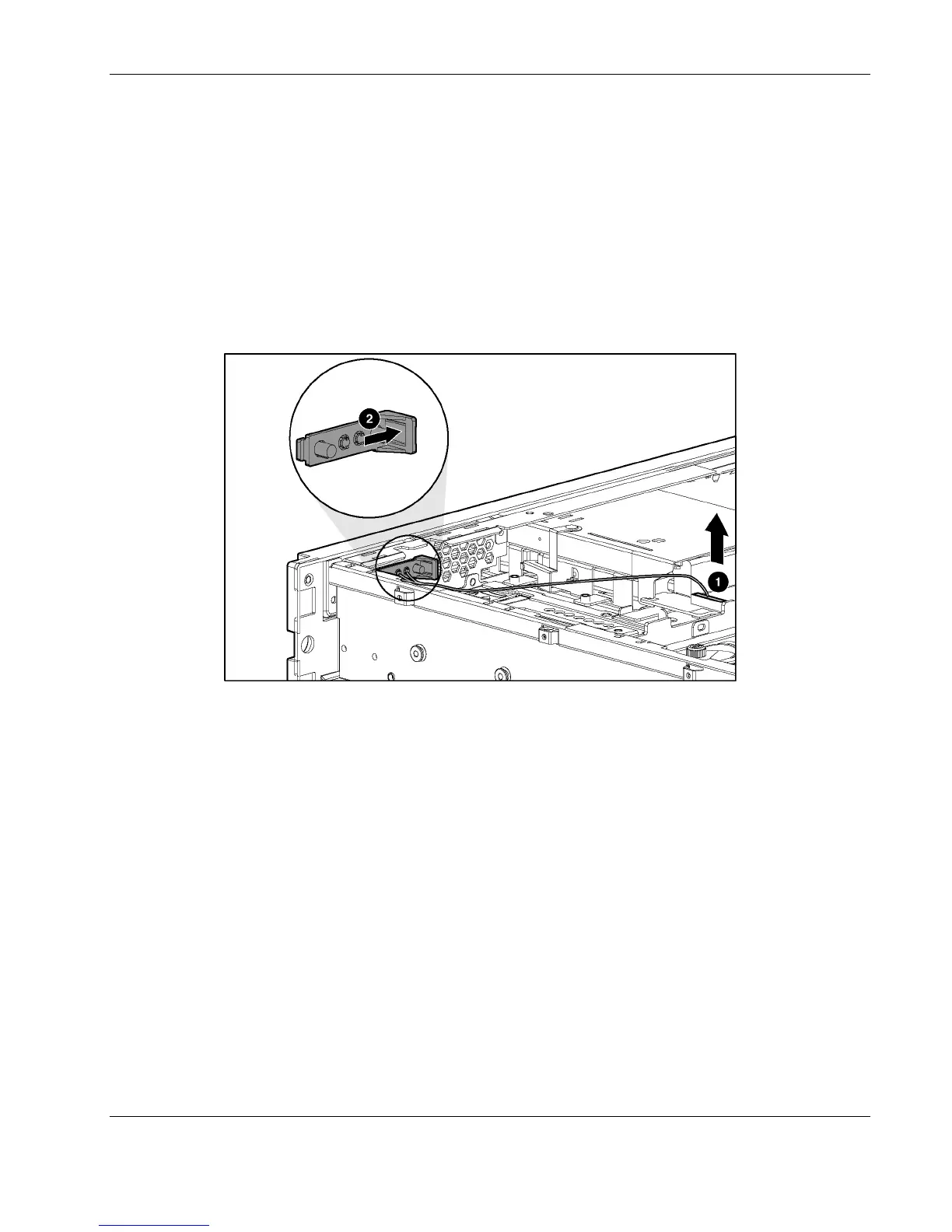

Figure 2-25: Removing the power button/LED assembly
Reverse the steps to replace the power button/LED assembly.
HP ProLiant DL585 Server Maintenance and Service Guide 2-29
