Removal and Replacement Procedures
5. Using a flathead screwdriver, disengage the locking tabs on the bezel from underneath
the chassis (1).
6. Remove the front bezel (2).

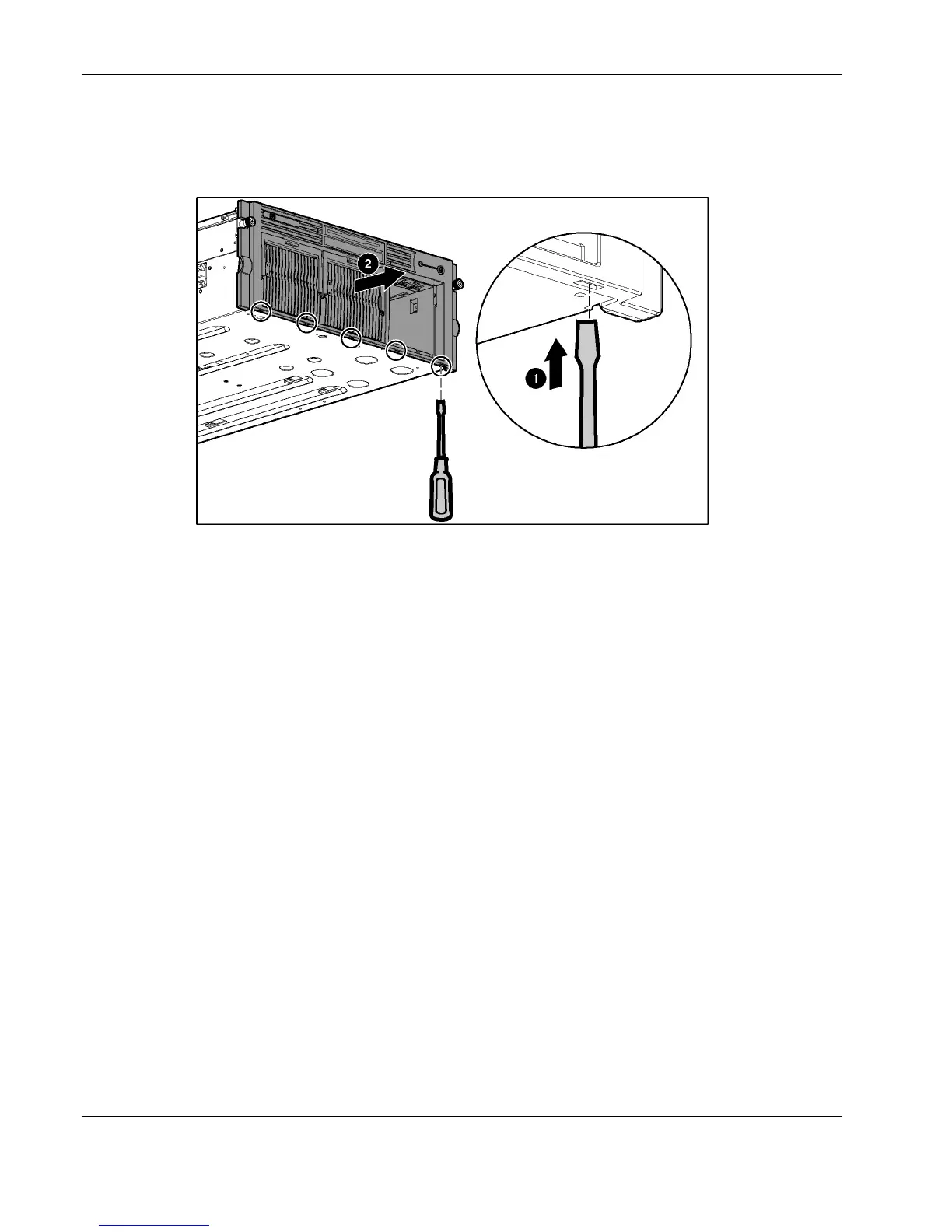

Figure 2-24: Disengaging the locking tabs and removing the front
bezel
Reverse the steps to replace the front bezel.
2-28 HP ProLiant DL585 Server Maintenance and Service Guide
