Removal and Replacement Procedures
Hot-Plug Power Supplies
For information on power supply diagnosis, refer to “Hot-Plug Po wer Supply LEDs” in
Chapter 4, “Server Component Identification.”
CAUTION: Do not remove a hot-plug power supply unless there are two power supplies
installed. If second power supply is not installed, the system must be powered down to
remove the power supply.
CAUTION: Hot-plug power supplies for the Server are keyed to be sure that only 800-W hot-
plug power supplies can be installed in the server. The handles on 800-W power supplies are
black to distinguish them from other power supplies.
To remove a hot-plug power supply:
1. Remove the power supply shipping screw from the bottom of the server, if installed.
2. Press the lever-release button on the handle of the power supply (1).
3. Pull on the lever to release the power supply (2).
4. Remove the power supply from the server (3).

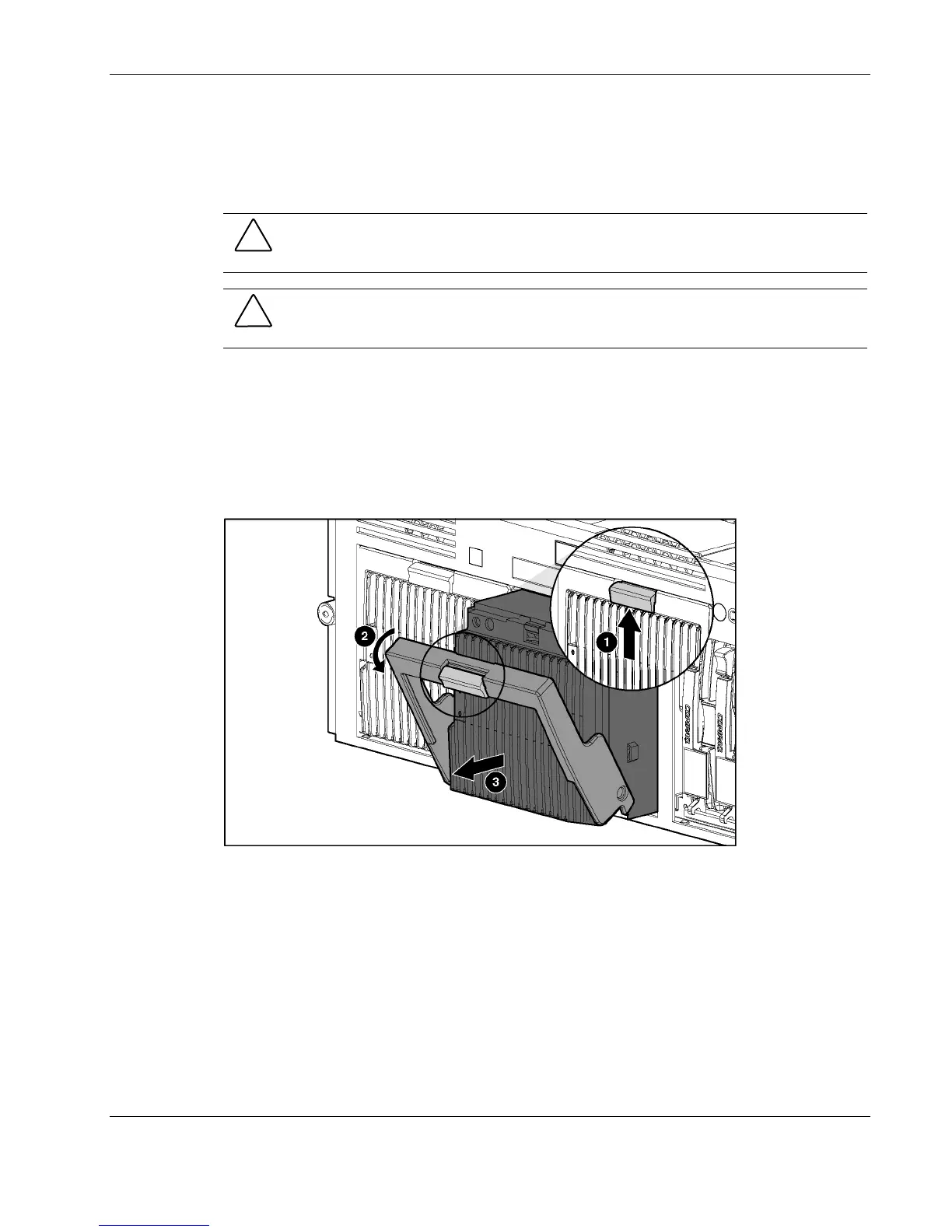

Figure 2-19: Removing a hot-plug power supply
Reverse the steps to replace the hot-plug power supply.
HP ProLiant DL585 Server Maintenance and Service Guide 2-23
