HP ProLiant ML30 Gen10

To Next Page

To Previous Page

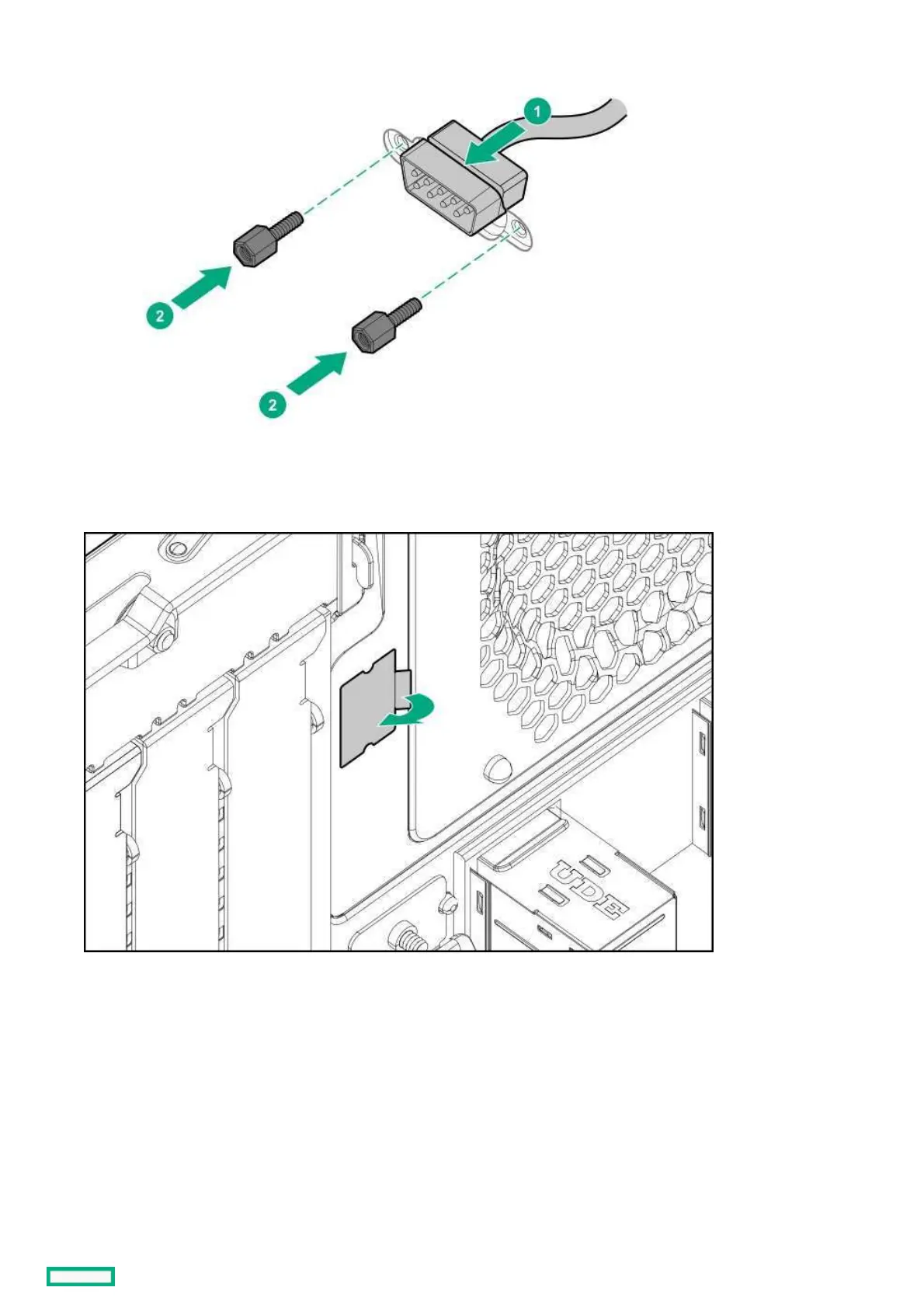

10. Remove the mylar tape.

11. Attach the serial port cable clip to the chassis.

Installing the serial port cable 114
