Removing and replacing the system batteryRemoving and replacing the system battery
ProcedureProcedure
1. Power down the server
.
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Disconnect all peripheral cables from the server.
4. Do one of the following:
If the server is in tower mode: Position the tower server for hardware configuration.
If the server is in rack mode: Remove the server from the rack .
5. Remove the front bezel
.
6. Remove the access panel
.
7. If installed, remove the air baffle
.
8. Locate the battery on the system board
.

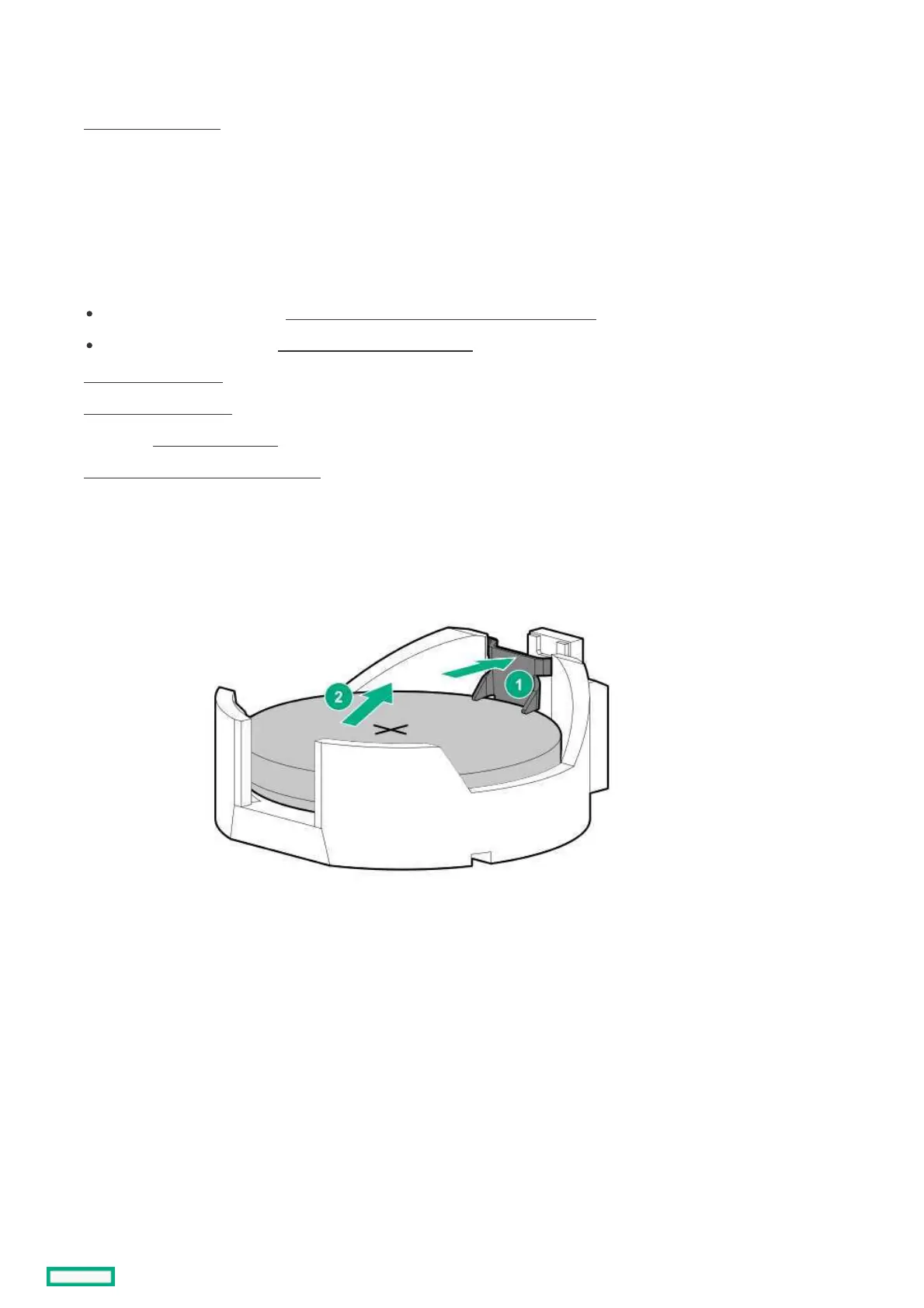

9. Remove the system battery:
a. Use a small flat-bladed, nonconductive tool to press the battery latch (callout 1).
b. Remove the system battery from the socket (callout 2).
10. Install the system battery:
a. With the side of the battery showing the "+" sign facing up, insert the battery into the socket (callout 1).
b. Press the system battery down until it clicks into place (callout 2).
