Installing an M.2 NVMe SSD on the system boardInstalling an M.2 NVMe SSD on the system board
PrerequisitesPrerequisites
Before you perform this procedure, make sure that you have the following tools available:
T-15 Torx screwdriver
4.5 mm hex nut screwdriver
Phillips No. 1 screwdriver
ProcedureProcedure
1. Power down the server.
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Disconnect all peripheral cables from the server.
4. Do one of the following:
If the server is in tower mode: Position the tower server for hardware configuration.
If the server is in rack mode: Remove the server from the rack .
5. Remove the front bezel
.
6. Remove the access panel
.
7. If installed, remove the air baffle
.

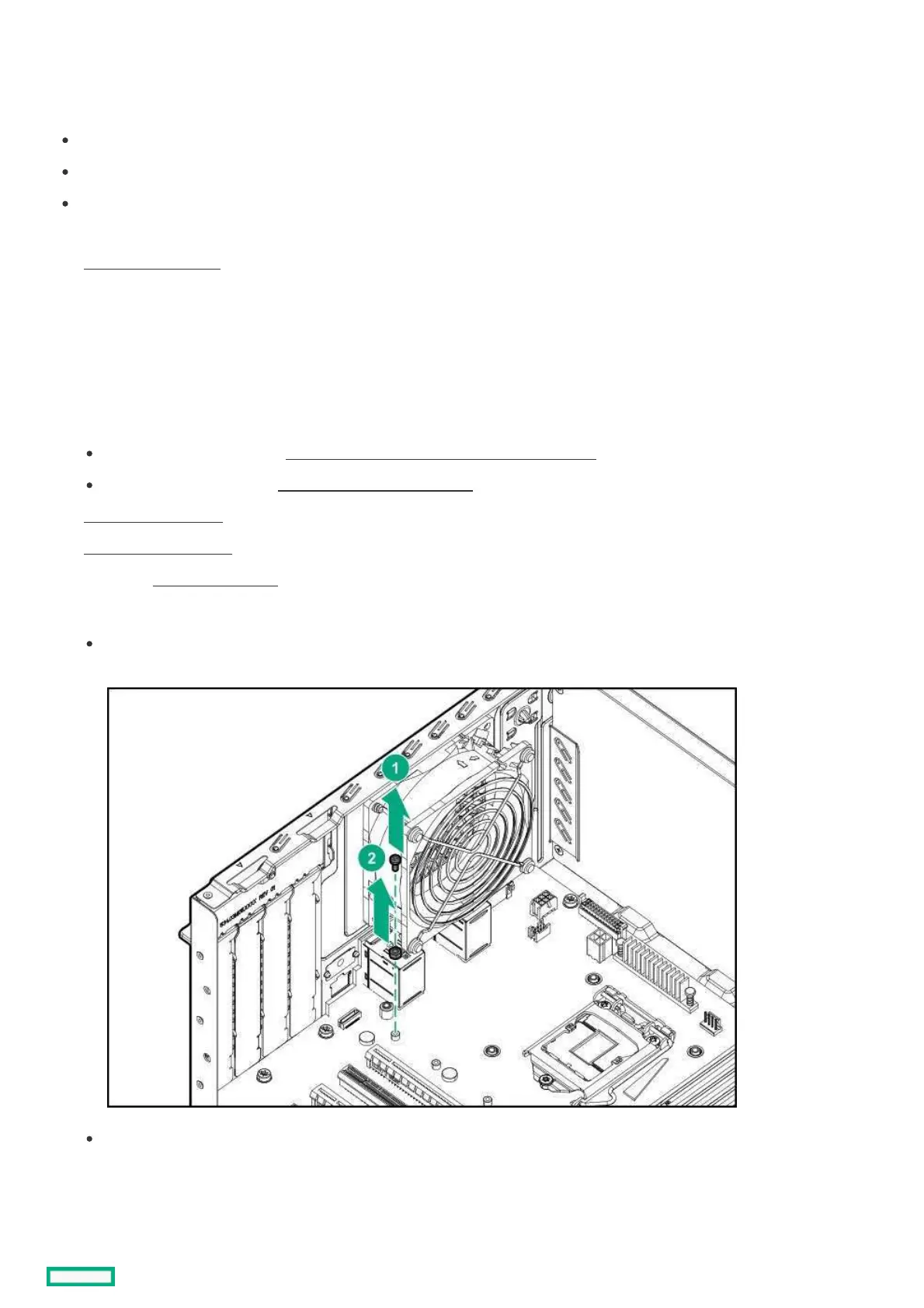

8. Remove the alignment screws:
If installing an M.2 2242 or 2280 SSD, remove both the hex nut and Phillips screw.
If installing the M.2 22110, remove only the Phillips screw. Retain the hex nut.
