Installing a DIMMInstalling a DIMM
ProcedureProcedure
1. Power down the server
.
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Disconnect all peripheral cables from the server.
4. Do one of the following:
If the server is in tower mode: Position the tower server for hardware configuration.
If the server is in rack mode: Remove the server from the rack .
5. Remove the front bezel
.
6. Remove the access panel
.
7. If installed, remove the air baffle
.
8. Open the DIMM slot latches.

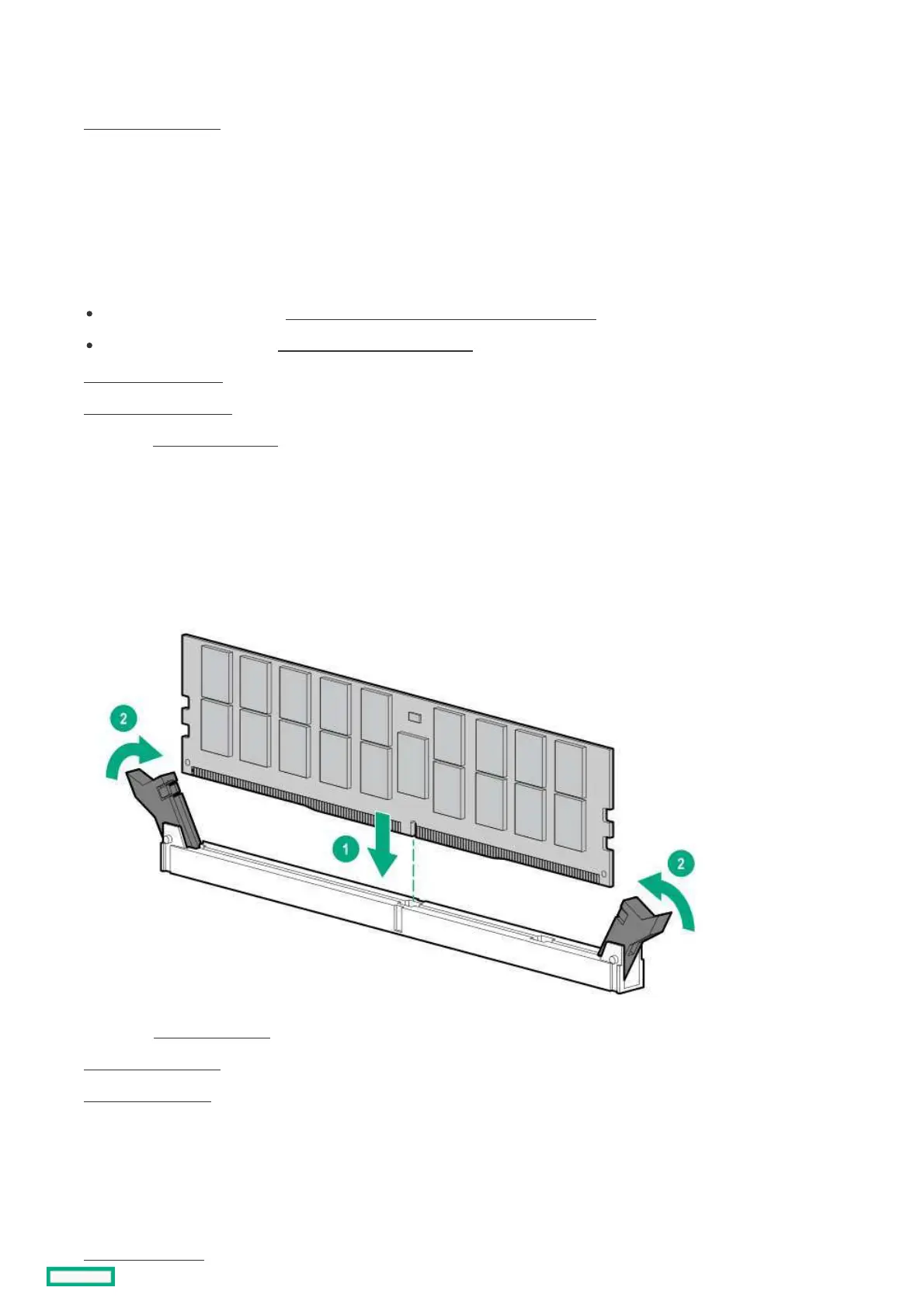

9. Align the notch on the bottom edge of the DIMM with the keyed surface of the DIMM slot, and then fully press the DIMM into the
slot until the latches snap back into place.
The DIMM slots are structured to ensure proper installation. If you try to insert a DIMM but it does not fit easily into the slot, you
might have positioned it incorrectly. Reverse the orientation of the DIMM and insert it again.
10. If removed, install the air baffle
.
11. Install the access panel
.
12. Install the front bezel
.
13. Connect all peripheral cables to the server.
14. Connect the power cords:
a. Connect each power cord to the server.
b. Connect each power cord to the power source.
15. Power up the server
.
Installing a DIMM 105

HP ProLiant ML30 Gen10 Specifications

General

Bus type	DMI3
Tjunction	100 °C
Scalability	1S
Processor cache	8 MB
Processor model	E-2124
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Processor threads	4
Processor codename	Coffee Lake
Execute Disable Bit	Yes
Processor frequency	3.3 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor package size	37.5 x 37.5 mm
Processor boost frequency	4.3 GHz
Processor operating modes	64-bit
Embedded options available	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Design Power (TDP)	71 W
Number of processors installed	1
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Memory bandwidth supported by processor (max)	41.6 GB/s
Maximum internal memory supported by processor	128 GB
On-board graphics card model	-
Internal memory	8 GB
Maximum internal memory	64 GB
Memory layout (slots x size)	1 x 8 GB
HDD size	- \
Supported HDD sizes	3.5 \
Total storage capacity	0 GB
Maximum storage capacity	- TB
Number of HDDs installed	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
Chassis type	Tower (4U)
Product color	Black
Power supply	350 W
Ethernet interface type	Gigabit Ethernet
PCI Express slots version	3.0
Processor ARK ID	134856
Intel Secure Key Technology version	1.00

Weight and Dimensions

Depth	475 mm
Width	175 mm
Height	368.3 mm
