HP ProLiant ML350 Gen9

Component identification 12
Item Description
11
Slot 8 PCIe3 x16 (16, 8, 4, 1) (for processor 2)
12
Slot 9 PCIe3 x8 (4, 1) (for processor 2)
13
Power supply 4
14
Video connector
15
Power supply 3
16
iLO connector
17
NIC connector 3
18
NIC connector 1
19
Power supply 2
20
USB 2.0 connectors (2)
21
USB 3.0 connectors (2)
22
Power supply 1

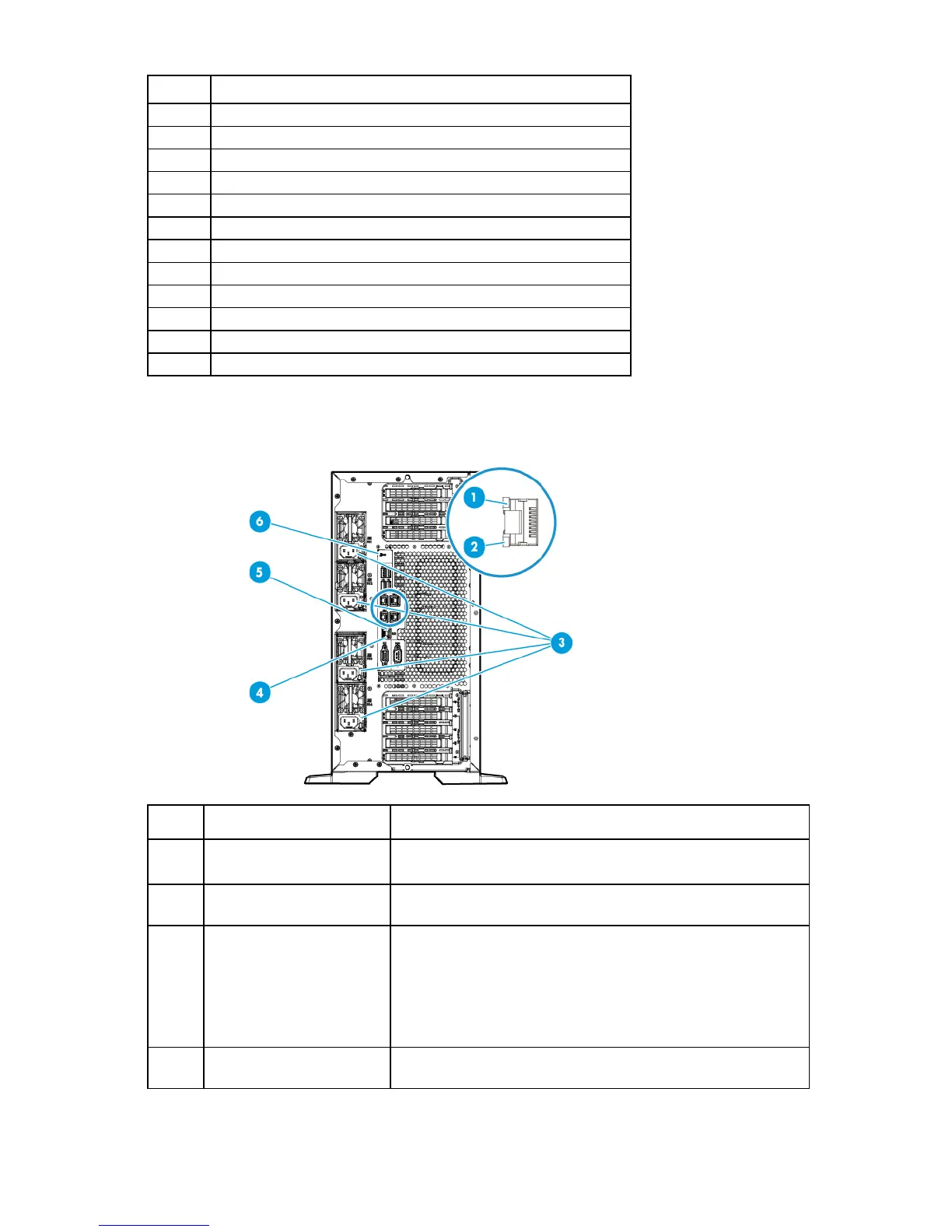

Rear panel LEDs
Item Description Status
1
NIC activity LED Green or flashing green = Network activity
Off = No network activity
2
NIC link LED Green = Linked to network
Off = No network connection
3
Power supply LED Solid green = Normal
Off = One or more of the following conditions exists:
•
Power is unavailable.
•
Power supply failed.
•
Power supply is in standby mode.
•
Power supply error.
4
iLO link LED Green = Linked to network
Off = No network connection
