Cabling 129

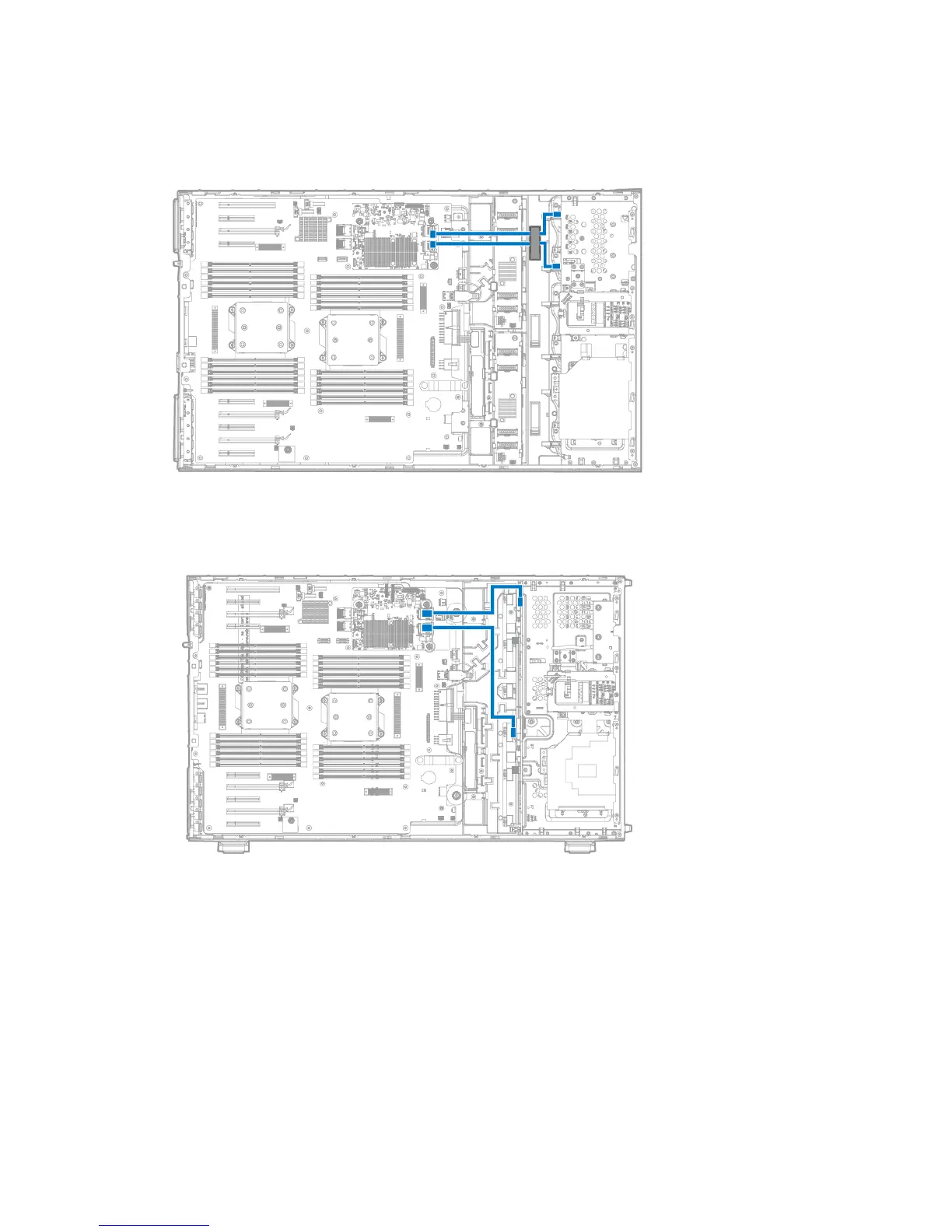

HP Flexible Smart Array Controller Mini-SAS cabling
• SFF configuration
• LFF configuration
HP Smart Array Controller Mini-SAS Y-cabling
Route the two ends of the Mini-SAS Y-cable through the cable management clips, and then connect them to
the drive backplane:
• Cable routing if the HP Smart Array controller is installed in PCIe slot 1 to 4:
