HP ProLiant ML350 Gen9

Component identification 13
Item Description Status
5
iLO activity LED Green or flashing green = Network activity
Off = No network activity
6
UID LED Solid blue = Activated
Flashing blue:
•
1 Hz/cycle per sec = Remote management or firmware upgrade
in progress
•
4 Hz/cycle per sec = iLO manual reboot sequence initiated
•
8 Hz/cycle per sec = iLO manual reboot sequence in progress
Off = Deactivated

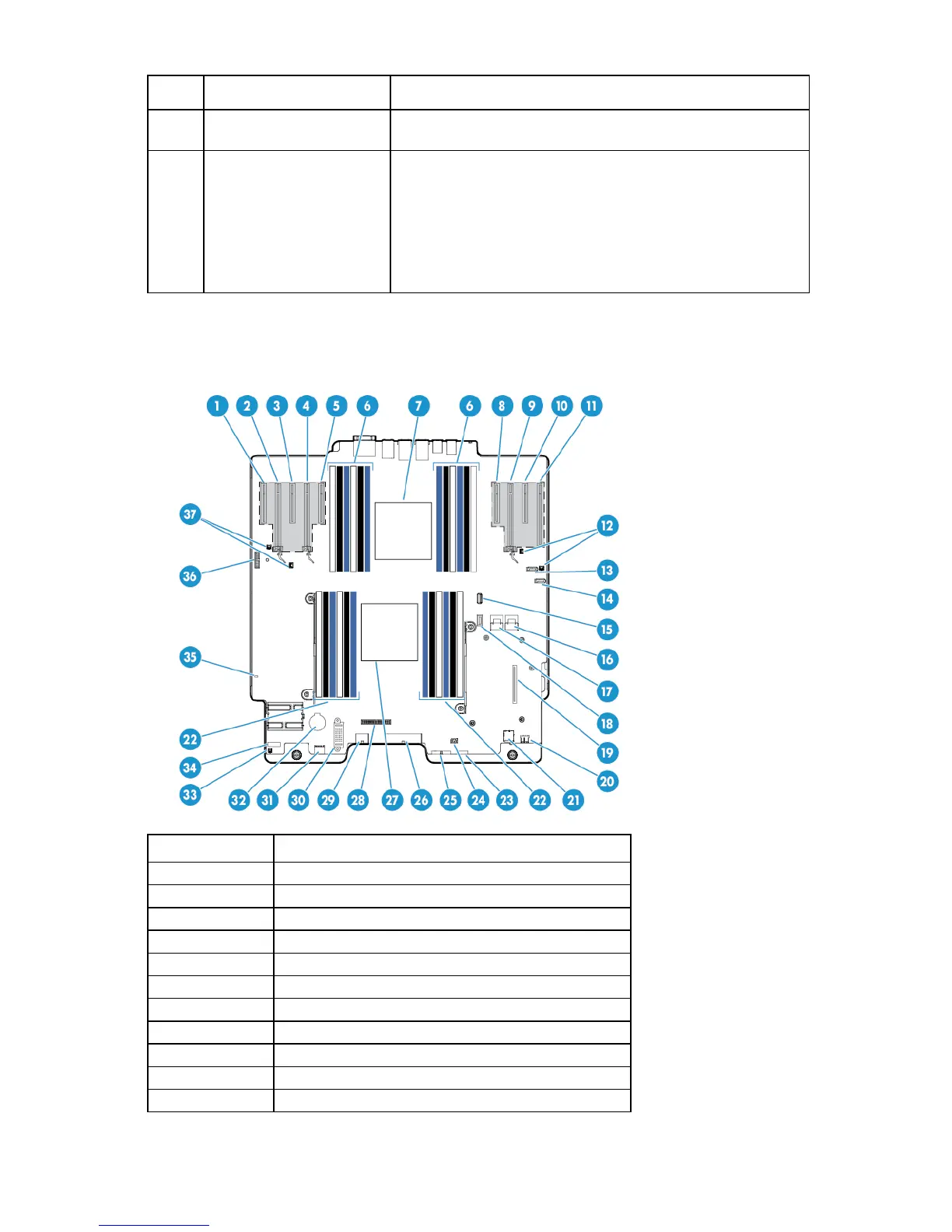

System board components
Item Description
1
Slot9 PCIe3 x8 (4,1) (for processor 2)
2
Slot8 PCIe3 x16 (16,8,4,1) (for processor 2)
3
Slot7 PCIe3 x8 (4,1) (for processor 2)
4
Slot6 PCIe3 x16 (16,8,4,1) (for processor 2)
5
Slot5 PCIe2 x8 (4,1) (for processor 2)
6
DIMM slots for processor 1
7
Processor 1
8
Slot4 PCIe3 x8 (4,1) (for processor 1)
9
Slot3 PCIe3 x16 (16,8,4,1) (for processor 1)
10
Slot2 PCIe3 x8 (4,1) (for processor 1)
11
Slot1 PCIe3 x16 (8,4,1) (for processor 1)
