Component identification 19

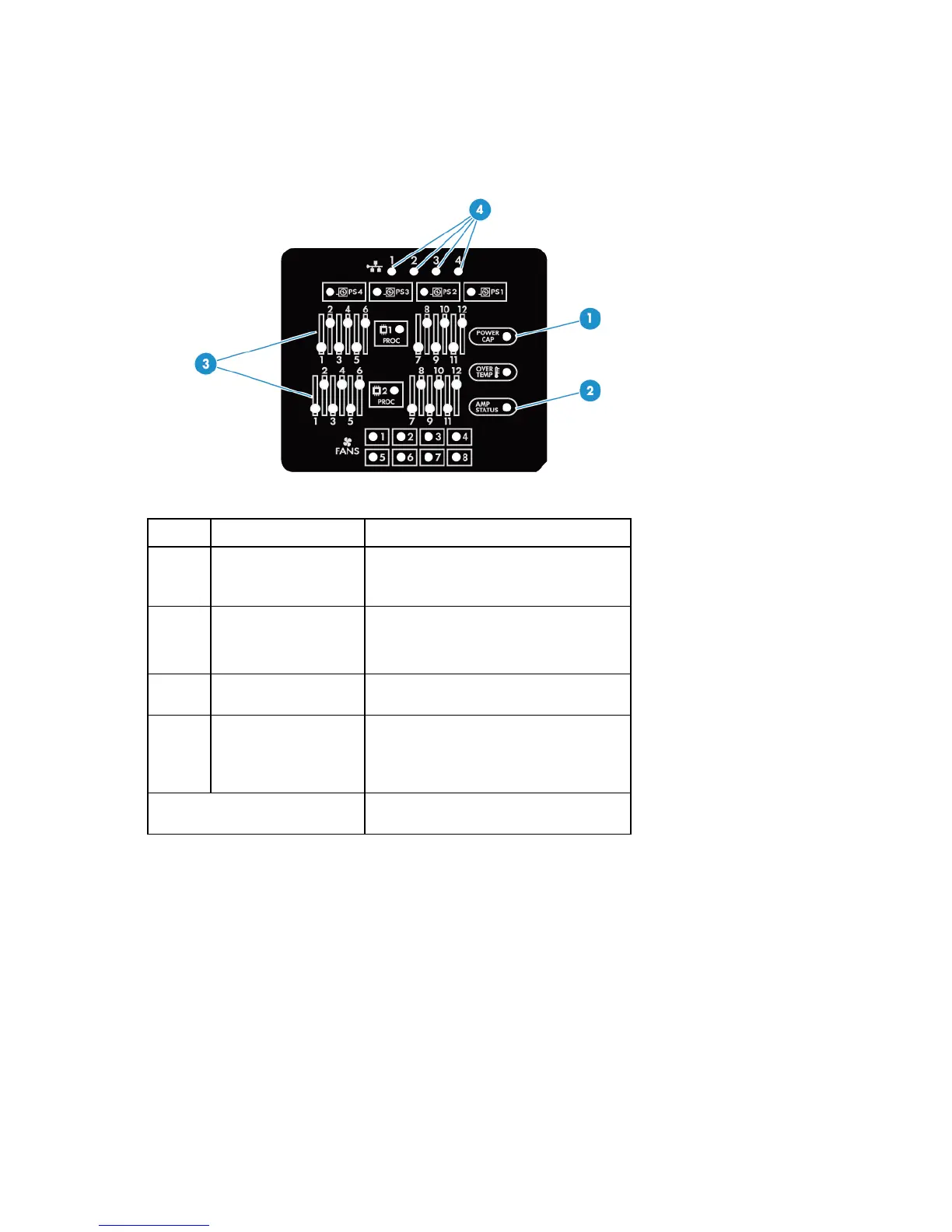

Systems Insight Display LEDs
The HP SID LEDs represent the system board layout. To view the LEDs, see "Using the Systems Insight Display
(on page 17)."
Item Description Status
1
Power cap Green = Power cap applied
Amber = Power not available
Off = Standby on not configured
2
AMP Status Green = AMP mode enabled
Amber = Failover or invalid configuration
Off = AMP mode disabled
3
DIMM LEDs Amber = DIMM error
Off = Normal
4
NIC LED Solid green = Link to network
Flashing green (1 Hz/cycle per sec) =
Network active
Off = No network activity
All other LEDs
Off = Normal
On = Failed
Systems Insight Display LED combinations
When the health LED on the front panel illuminates either amber or red, the server is experiencing a health
event. Combinations of illuminated SID LEDs, the system power LED, and the health LED indicate system
status.
