Hardware options installation 71

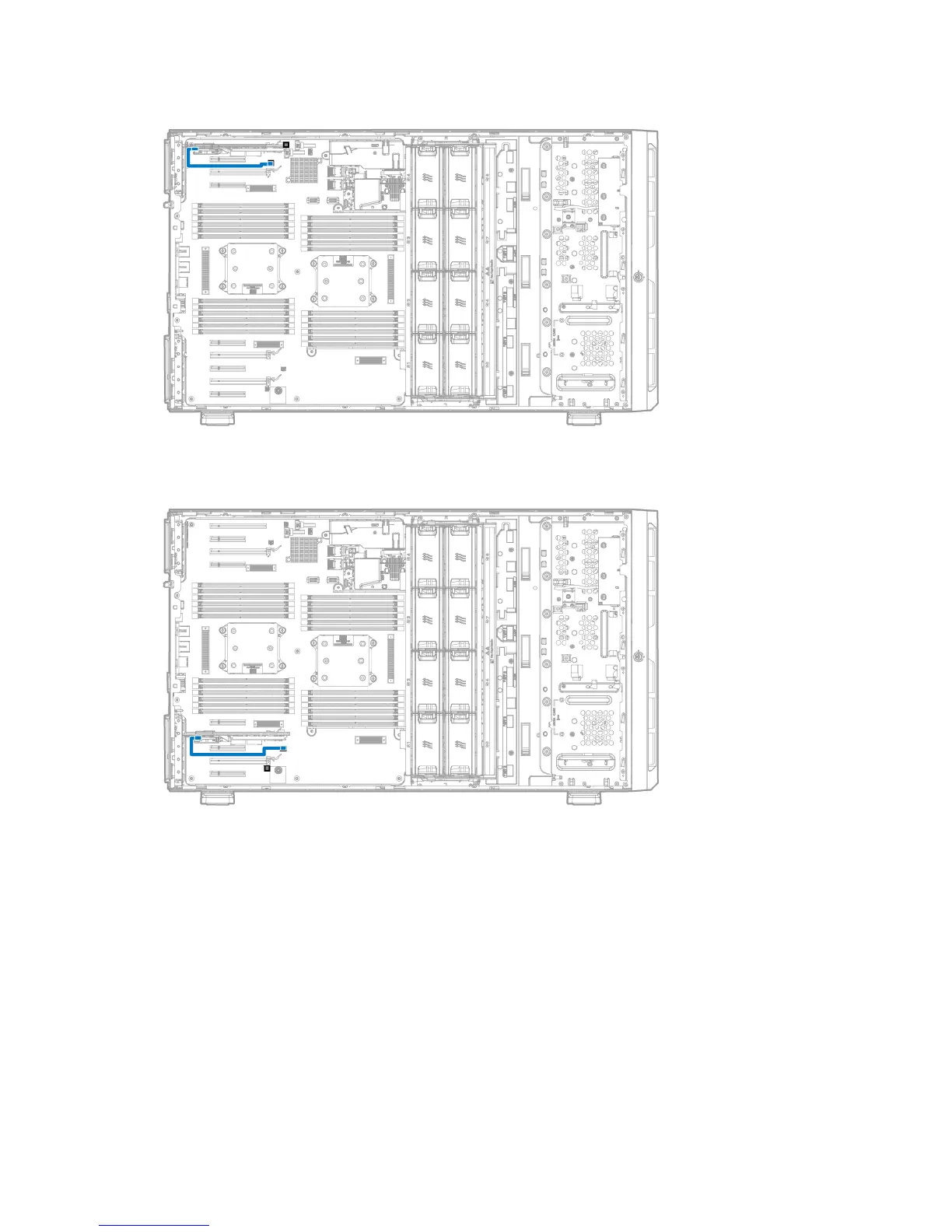

o Backup power cabling when the HP Smart Array controller is installed in PCIe slot 1 to 4
o Backup power cabling when the HP Smart Array controller is installed in PCIe slot 6 to 9
11. If you are planning to install an HP Smart Storage Battery Pack, install it now ("Installing an HP Smart
Storage Battery" on page 72).
12. Install the fan cage (on page 37).
13. Install the air baffle (on page 34).
14. Install the access panel (on page 32).
15. Do one of the following:
o If the server is in a tower configuration, return the server to an upright position.
o If the server is in a rack configuration, slide the server into the rack.
16. Connect each power cord to the server.
17. Connect each power cord to the power source.
18. Power up the server (on page 29).
